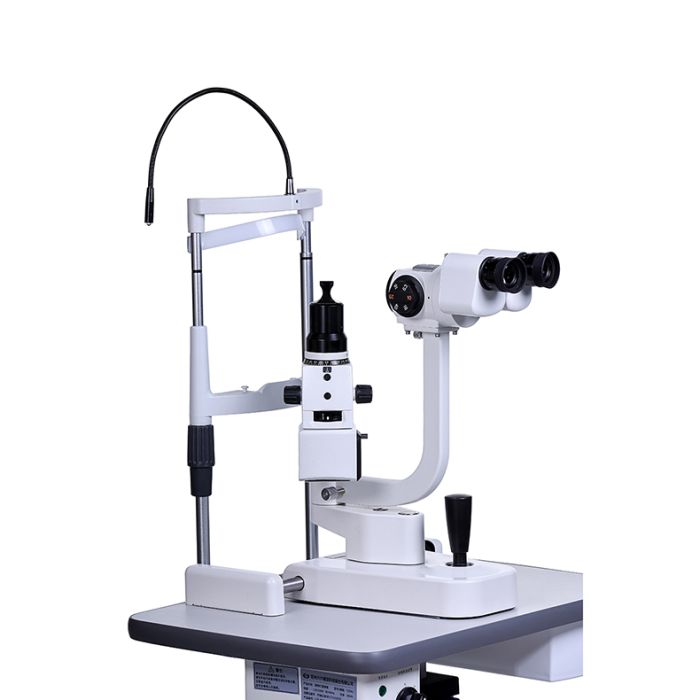

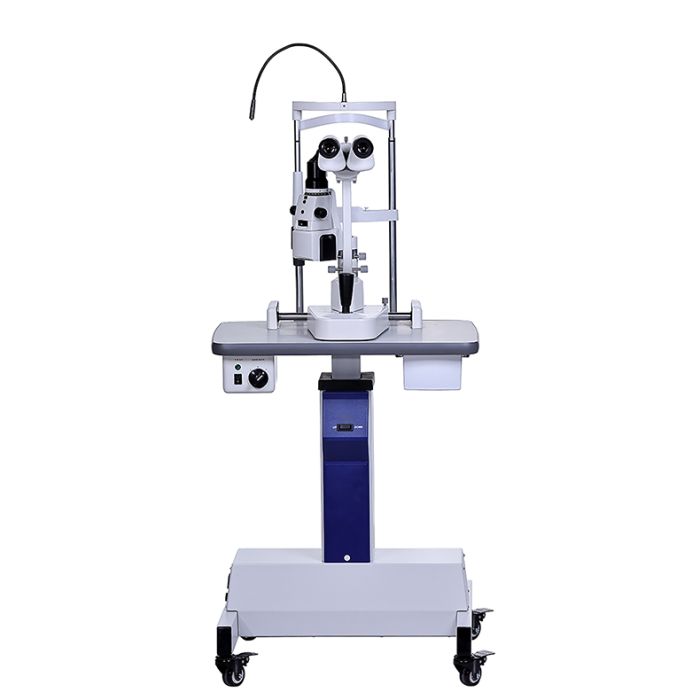

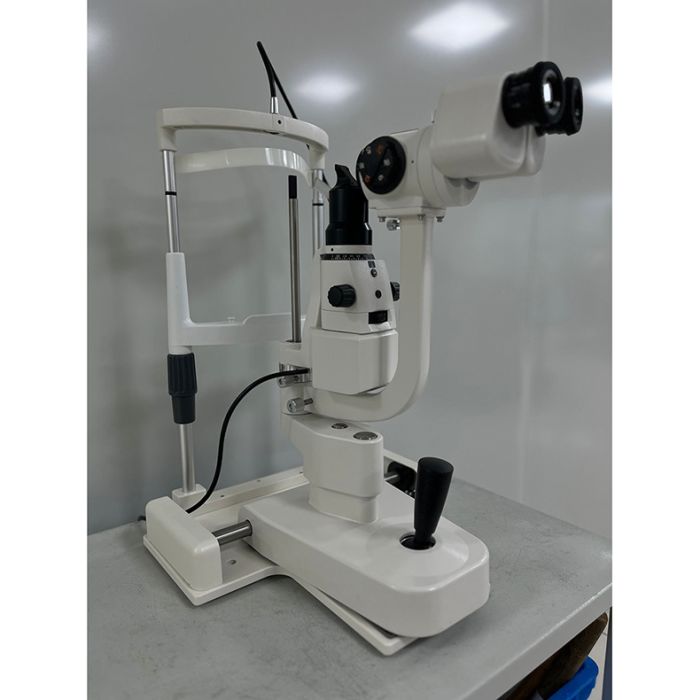

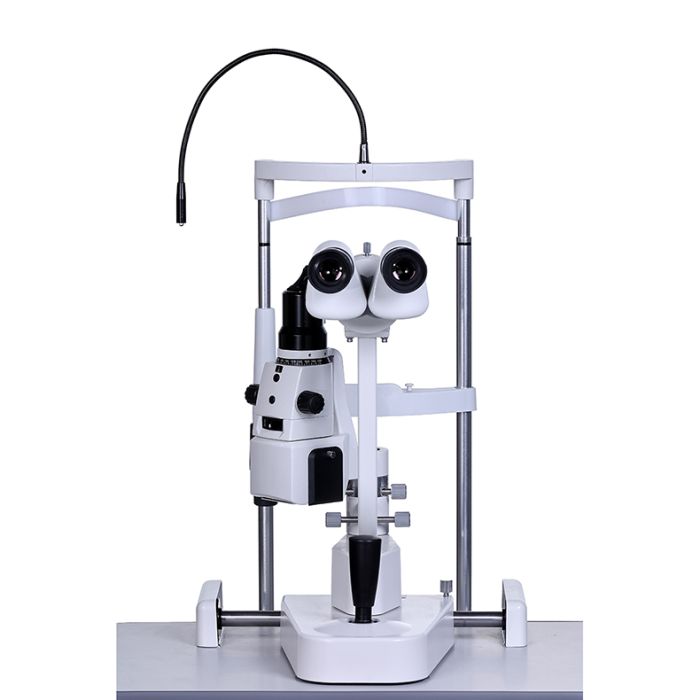

YZ5X1 Five Magnifier Slit Lamp | Galilean Optics

YZ5X1 Five Magnifiers Slit Lamp

Item# YZ5X1

Get Quote

Add to Quote

Description

CE, ISO13485 Certified

Product Overview:
The YZ5X1 Five Magnifiers Slit Lamp delivers complete functionality and reliable performance to meet the demanding requirements of modern ophthalmic practice. Whether you are conducting routine eye examinations, fitting contact lenses, or performing detailed anterior segment assessments, this slit lamp is built to support your clinical workflow with precision and consistency.

Key Features:

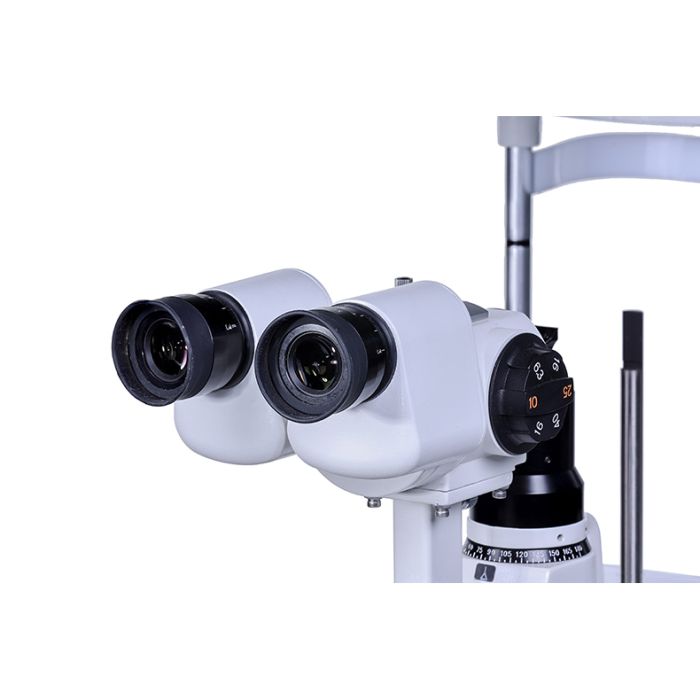

* Galilean stereoscopic microscope provides practitioners with unsurpassed clarity and sharpness, effectively eliminating double images for a comfortable viewing experience.
* Five-step drum magnification allows quick and precise magnification changes during examinations.
* Optional accessories include teaching tube, CCD camera, and tonometer for expanded clinical capabilities.

Specifications:
Microscope Type	Galilean stereoscope microscope
Objective Magnification	Five Steps drum Magnifications
Eye Piece	12.5x
Magnifications（Field of View）	6x（φ33mm）,10x（φ22.5mm）,16x（φ14mm）,25x（φ8.8mm）,40x（φ5.5mm）
Pupil Distance	55mm～75mm
Diopter Adjustment	-5D~+3D
Slit Width	0mm～14mm adjustable (slit is round when the slit width is 14mm)
Slit Height	1mm～14mm adjustable
Slit Angle	0°～180° adjustable
Slit Inclination	NO
Diameter of Light Spot	φ14mm, φ9mm, φ5.5mm, φ0.3mm
Filter	Heat Absorption、Redfree、Cobalt Blue
Illumination Bulb	6V/20W Halogen Bulb
Input Voltage	AC220V±22 V ;AC110V±11 V
Electrical Safety Standard	Conform to Standard: IEC601-1,Class I,Type B
Packing Volume	720mm x 495mm x 480mm
Total Weight	23Kg
Optional Accessories	Applanation Tonometer、 Trihedron Lens、Gonioscope、Funduscope、Aspheric Lens,Teaching tube.
