YZ5F Five Magnifiers Slit Lamp
Item#
YZ5F
Abstract
Product Abstract: Converging | 6x,10×,16×,25x,40x | Eyepiece:12.5x | Slit: 0-9mm | Inclination：0°,5°,10°,20° | Filter: 4 pcs
Description

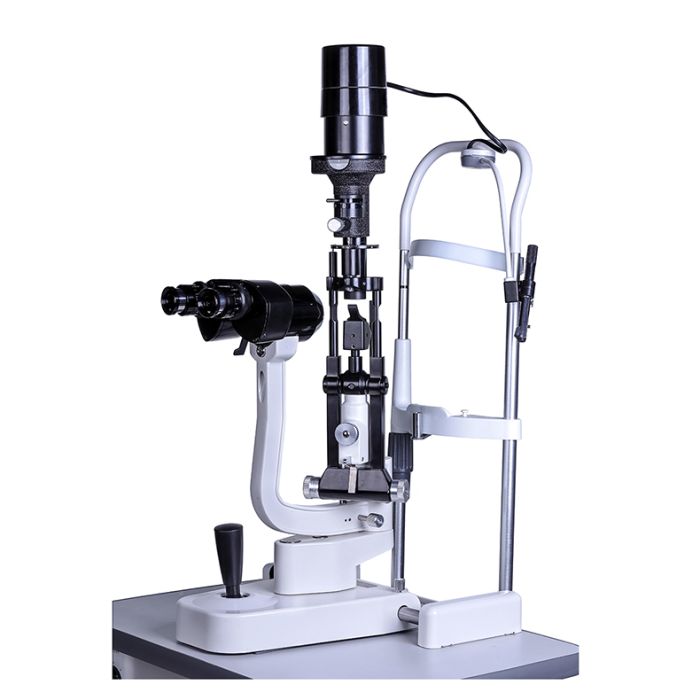

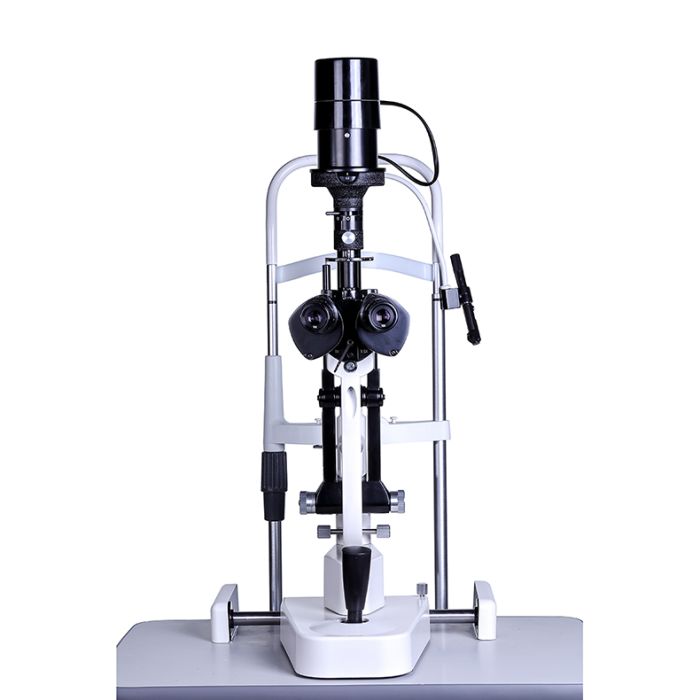

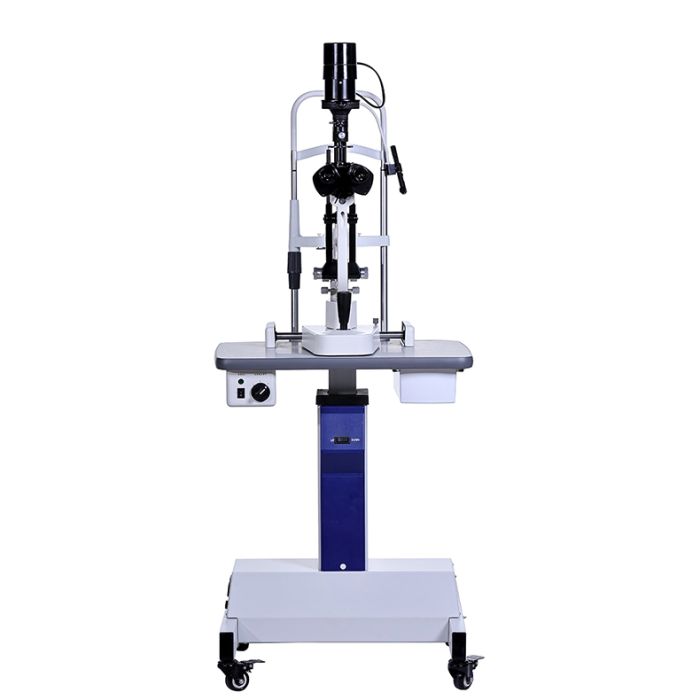

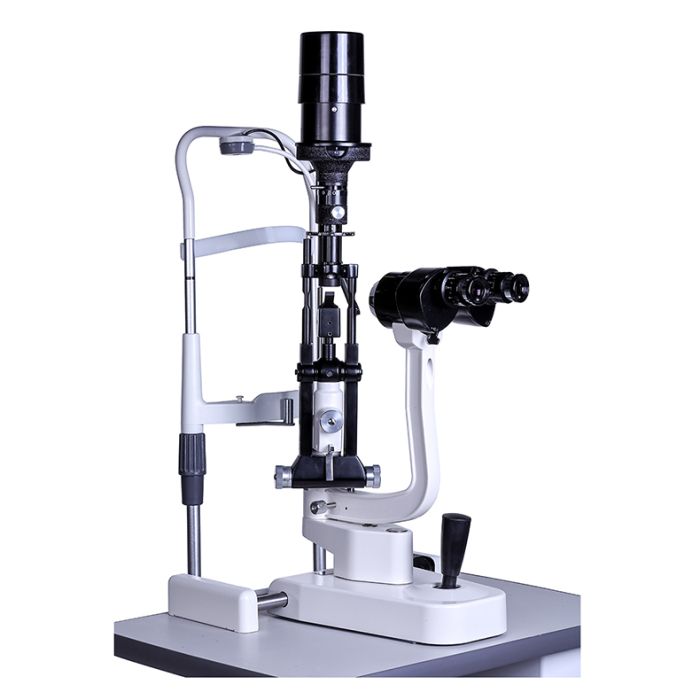

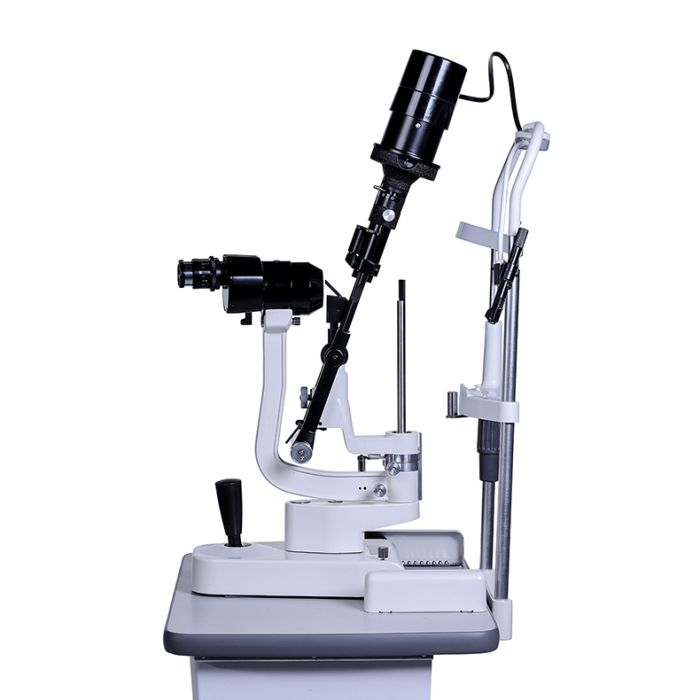

🔬 YZ5F Five Magnifiers Slit Lamp – Precision Optics for Eye Care Professionals
CE, ISO13485 Certified
Product Overview
Abstract:
The YZ5F Slit Lamp delivers superior optical performance and seamlessly connects with international standard interfaces, making it an ideal choice for ophthalmologists, optometrists, and eye clinics seeking reliable diagnostic equipment.
Key Features & Benefits
Characteristics:
* Converging stereoscope microscope provides crystal-clear, high-resolution images for accurate diagnosis.
* Imported Schott optics from Germany reduces optical distortion, increases clarity, and enhances depth of focus.
* All optical lenses are moistureproof, mildewproof, and anti-reflected treated for long-lasting durability and consistent performance.
* Three-step magnifications (10X, 16X, 25.6X) can be changed by lever; 10X & 16X eyepieces are available.
* All joints can be connected by accessories with international standards for versatile clinical integration.
Technical Specifications
| Specifications: | ||||
| Microscope Type | Converging stereoscope microscope | |||
| Objective Magnification | Two-Step Magnifications | |||
| Eye Piece | 10x, 16x | |||
| Magnifications (Field of View) |
10x (φ18mm), 16x (φ14.5mm) 16x (φ11.25mm), 25.6x (φ9mm) |
|||
| Range of Pupil Distance | 10x: 55mm～82mm 16x: 51mm~78mm | |||
| Diopter Adjustment | 10x: ±8D 16x: ±10D | |||
| Slit Width | 0mm～9mm adjustable (slit is round when the slit width is 9mm) | |||
| Slit Height | 1mm～8mm adjustable | |||
| Slit Angle | 0°～180° adjustable | |||
| Slit Inclination | 5°, 10°, 15°, 20° four steps adjustable | |||
| Diameter of Light Spot | φ9mm, φ8mm, φ5mm, φ3mm, φ2mm, φ1mm, φ0.2mm | |||
| Filter | Heat Absorption, Grey, Redfree, Cobalt Blue | |||
| Illumination Bulb | 12V/30W Halogen Bulb | |||
| Input Voltage | AC220V±22V; AC110V±11V | |||
| Electrical Safety Standard | Conforms to Standard: IEC601-1, Class I, Type B | |||
| Packing Volume | 720mm x 495mm x 480mm | |||
| Total Weight | 24Kg | |||
| Optional Accessories | R type, T type Applanation Tonometer, measuring eyepiece, Trihedron Lens, Gonioscope, Funduscope, Aspheric Lens | |||
Ideal Usage Scenarios
The YZ5F Slit Lamp is engineered for a wide range of clinical and diagnostic applications:
* Ophthalmology Clinics: Perform comprehensive anterior and posterior segment examinations with exceptional clarity.
* Optometry Practices: Conduct detailed contact lens fitting and corneal assessments with precise magnification control.
* Hospital Eye Departments: Support accurate diagnosis of cataracts, glaucoma, and retinal conditions using advanced optical technology.
* Medical Teaching & Training: Provide students and residents with hands-on experience using industry-standard equipment.
* Research Laboratories: Facilitate detailed ocular studies with reliable, repeatable imaging and measurement capabilities.
