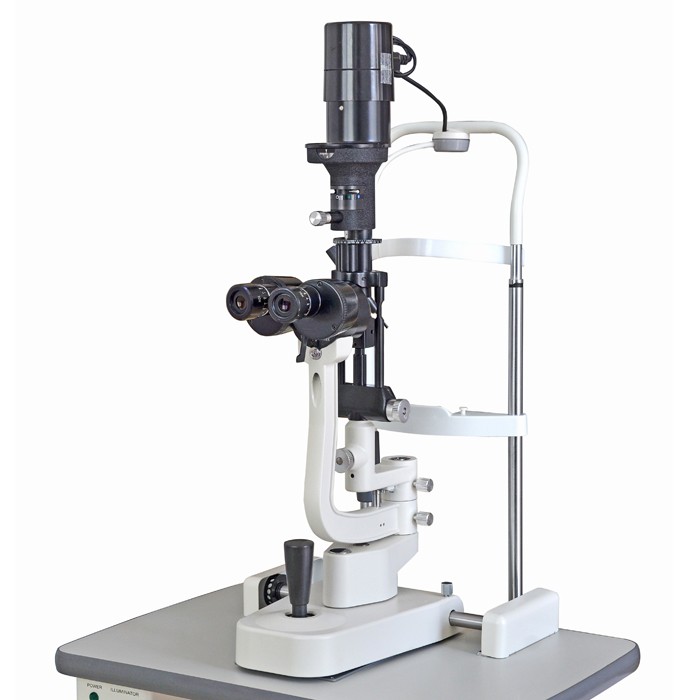

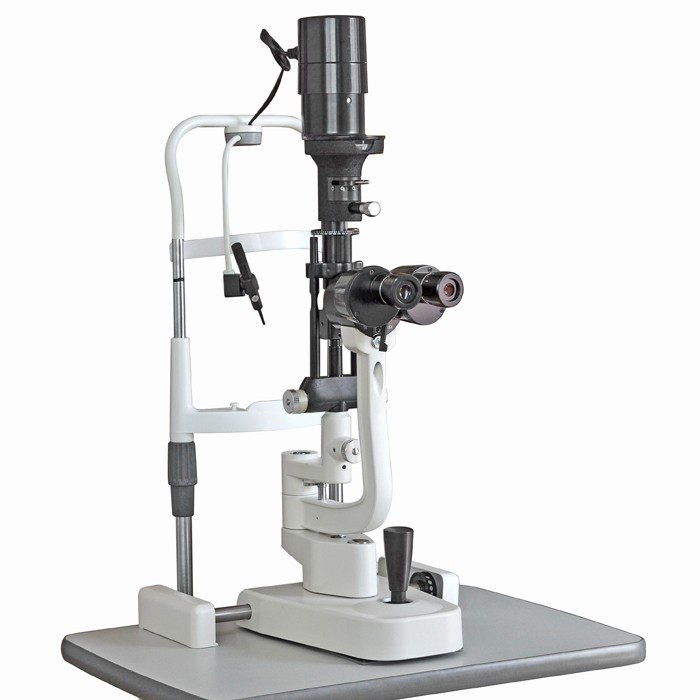

YZ5J Two Magnifiers Slit Lamp

Item# YZ5J

Get Quote

Add to Quote

Description

📦 Packaging Detail

Unit:PCS/CTNS/cm/kg/m³

Desc.	Length	Width	Height	NW.	GW.	CBM	CBM/5000	CBM/6000
Main	68	58	55	20	23	0.217	43.4	36.167
Table	69	59	27	18	20	0.11	22	18.333
Total				38	43	0.327	65.4	54.5

CE, ISO13485 Certified
Overview:
The YZ5J Two Magnifiers Slit Lamp is a newly designed optical instrument that meets essential optical requirements. It offers easy operation and a medium price point, making it an ideal choice for eye care professionals seeking reliable performance without a premium price tag.

Key Features:
* Two-step magnifications: 10× and 16× for versatile viewing.
* Advanced lens treatment: All optical lenses are moistureproof, mildewproof, and anti-reflected for clear, long-lasting performance.
* Excellent optical performance: Delivers sharp, high-contrast images for accurate diagnostics.
* Convenient and compact design: Saves space and is easy to maneuver in any clinical setting.

Specifications:
Microscope Type	Converging stereoscope microscope
Objective Magnification	Two Steps Magnifications
Eye Piece	10x
Magnifications（Field of View）	10x（φ18mm), 16x（φ14.5mm）
Pupil Distance	55mm～82mm
Diopter Adjustment	±6D
Slit Width	0mm～9mm adjustable (slit is round when the slit width is 9mm)
Slit Height	1mm～8mm adjustable
Aperture of Diameter	φ9mm、φ8mm、φ5mm、φ3mm、φ2mm、φ1mm、φ0.2mm
Slit Angle	0°～ 180° adjustable
Slit Inclination	5°, 10°, 15°, 20°, four steps adjustable
Diameter of Light Spot	φ9mm、φ8mm、φ5mm、φ3mm、φ2mm、φ1mm、φ0.2mm
Filter	Heat Absorption、Grey、Redfree、Cobalt Blue
Illumination Bulb	12V/30W Halogen Bulb
Input Voltage	AC220V±22 V ;AC110V±11 V
Electrical Safety Standard	Conform to Standard: IEC601-1, Class I, Type B
Packing Volume	720mm x 495mm x 480mm
Total Weight	23Kg
Optional Accessories	R type , T type Applanation Tonometer、 Measuring Eye Piece、 Trihedron Lens、Gonioscope、Funduscope、Aspheric Lens
