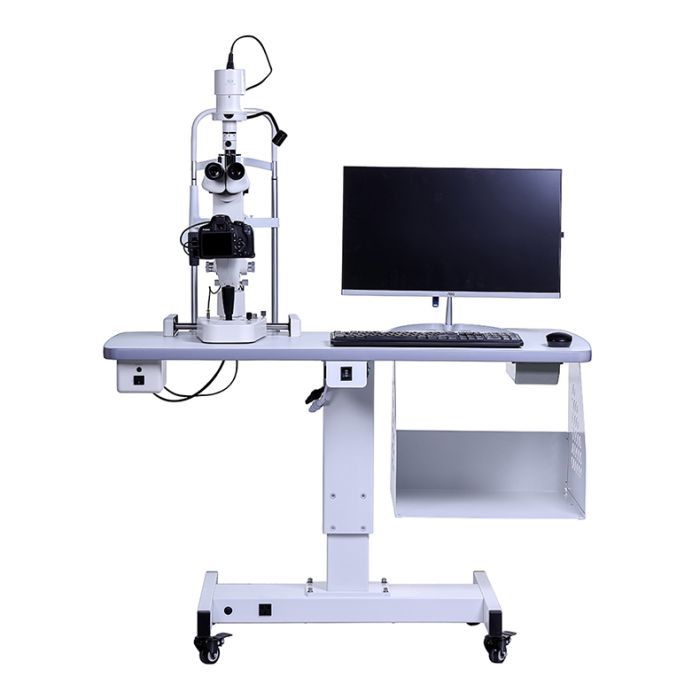

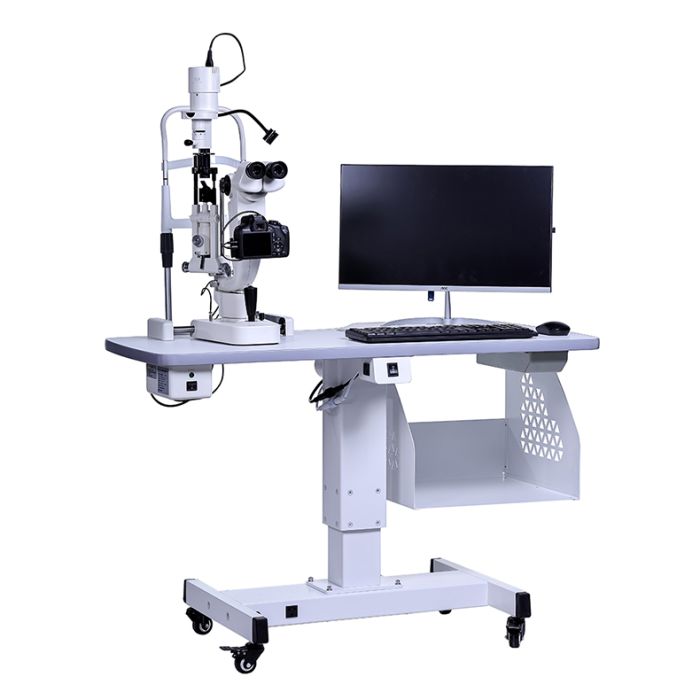

YZ5S Digital 5 Magnifier Slit Lamp

Desc Price includes slit lamp,computer,camera,and table as photo

Item# YZ5S

Get Quote

Add to Quote

Description

🔬 YZ5S Digital 5-Magnification Slit Lamp — Precision Eye Examination Made Simple

The YZ5S Digital 5 Magnifier Slit Lamp is a professional-grade ophthalmic instrument designed for accurate anterior and posterior segment eye examinations. Whether you run a busy eye clinic, a hospital ophthalmology department, or an optical practice, this slit lamp delivers sharp optics, flexible magnification, and integrated digital imaging — all in one reliable system.

Certified with CE and ISO13485, the YZ5S meets international quality and safety standards, giving you complete confidence in every diagnosis.

📋 Packaging & Shipping Specifications

Plan your logistics with confidence. Below is the complete packing data for the YZ5S slit lamp and its accessories:

Item	Length (cm)	Width (cm)	Height (cm)	Volume (m³)	Net Weight (kg)	Gross Weight (kg)	Vol. Weight 0.005 Express (kg)	Vol. Weight 0.006 Air (kg)
Slit Lamp	65	52	70	0.2366	20	23	48	40
Computer	44	62	18	0.0491	5	7	10	9
Table 1	123	77	17	0.161	17	20	33	27
Table 2	78	54	21	0.0885	17	19	18	15
Table 3	65	32	25	0.052	13	15	11	9
Total	—	—	—	0.5872	72	84	120	100

⚙️ Technical Specifications

Every component of the YZ5S is engineered for precision and durability. Review the full technical parameters below:

Microscope Type	Galilean stereoscopic microscope
Magnification	Five-step drum magnifications
Eyepiece	12.5×
Magnification Ratio (Field of View)	6.3× (Φ33mm), 10× (Φ22.5mm), 16× (Φ14mm), 25× (Φ8.8mm), 40× (Φ5.5mm)
Range of Pupil Distance	55 mm ~ 75 mm
Adjustment of Diopter	-5D ~ +3D
Slit Width	0mm~14mm adjustable (slit is round when the slit width is 14mm)
Slit Height	1mm~14mm adjustable
Aperture Diameter	Φ14mm, Φ10mm, Φ5mm, Φ2mm, Φ1mm, Φ0.2mm
Slit Angle	0° ~180° adjustable
Slit Inclination	5°, 10°, 15°, 20°
Filter	Heat absorption, grey, red-free, cobalt blue
Illumination Bulb	12V 30W Halogen / LED Bulb
Display Usage	Single or Double dynamic showing
Software Function	Patients Database, Image Processing and Measuring, Assistant Diagnosis, etc.

✨ Key Features & Benefits

Five-Step Magnification Drum: Switch effortlessly between 6.3×, 10×, 16×, 25×, and 40× to examine everything from broad eye structures to fine details.
Galilean Stereoscopic Optics: Delivers a clear, true-to-life 3D view for accurate depth perception during examinations.
Adjustable Slit Width & Height: Fine-tune from 0mm to 14mm for precise illumination control across different diagnostic needs.
Versatile Filter Set: Includes heat absorption, grey, red-free, and cobalt blue filters for comprehensive anterior segment assessment.
Digital Imaging & Software: Built-in patient database, image processing, measurement tools, and assistant diagnosis functions streamline your workflow.
Dual Display Mode: Choose single or double dynamic showing for flexible viewing and patient communication.
Ergonomic Design: Pupil distance range of 55–75mm and diopter adjustment from -5D to +3D accommodate a wide range of users.

🏥 Ideal Usage Scenarios

The YZ5S is built for professionals who demand precision and efficiency. Here's how it fits into your daily practice:

Eye Clinics & Hospitals: Perform routine and advanced examinations of the cornea, iris, lens, and anterior vitreous with confidence.
Optical Shops & Vision Centers: Offer comprehensive eye health screenings that go beyond standard refraction tests.
Teaching & Training Institutions: Use the digital display and software tools to demonstrate diagnostic techniques to students.
Research & Clinical Studies: Capture, measure, and document ocular images for analysis and publication.

📦 What's in the Box?

Your YZ5S digital slit lamp package includes the main slit lamp unit, computer system, and all necessary tables and accessories — everything you need to start examining patients right away.

❓ Frequently Asked Questions

Q: Is the YZ5S suitable for both LED and halogen illumination?
A: Yes, the illumination bulb supports both 12V 30W Halogen and LED options, giving you flexibility based on your preference.

Q: Can I connect the slit lamp to a computer for image storage?
A: Absolutely. The included software features a patient database, image processing, measuring tools, and assistant diagnosis functions.

Q: What certifications does this product carry?
A: The YZ5S is CE certified and manufactured under ISO13485 quality management standards.

Ready to elevate your eye care practice? Order the YZ5S Digital 5 Magnifier Slit Lamp today and experience precision diagnostics like never before.
