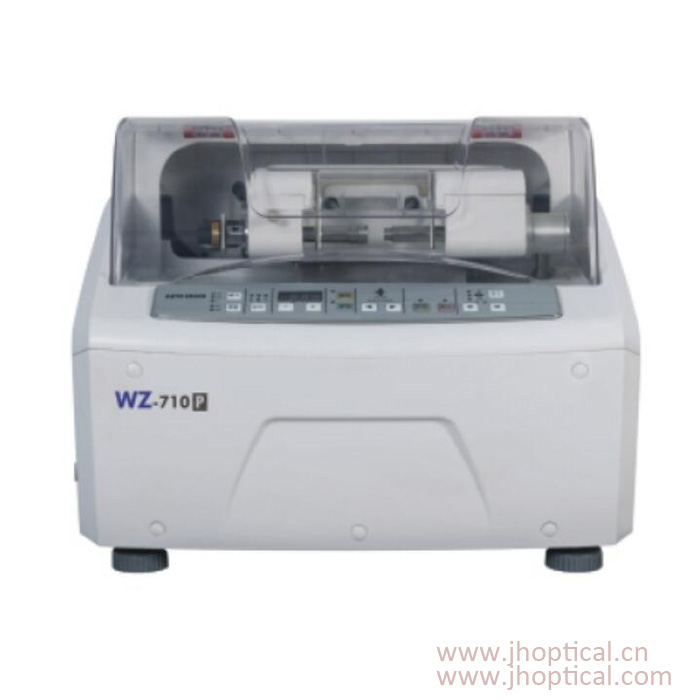

WZ-710P Auto lens edger, processing CR, GL, PC lenses, up and down water outlet, with lamp
Price
$
Login
Item#
WZ-710P
已选清单
0种
0件
Specification
1) Main machine+Large cabinet+water tank and pump
2) Main machine+Large cabinet
3) Main machine+water tank and pump
4) main machine only
Description
Abstract:
Resin lenses,glass lenses,PC lenses,high index wheel,widen rough grinding,flat edge,polishing,V grooving,all stainless steel material,Universal chuck,Antiskid dishwasher seat,LED light,Corrosion protection machine head.
| Technical Parameter: | |||||||
| Grinding disc clamp force | 0.5~ 0.75MP | ||||||
| Lens material | CR, GL, PC | ||||||
|
Water outlet method |
Up and down water outlet |
||||||
|
Template clamping method |
Compression type |
||||||
| Machine size | 550* 470* 410mm | ||||||
| Wheel diameter | 100mm | ||||||
| Working tempreture | 5~40℃ | ||||||
| Diameter of processed lenses: | Min22mm Max800mm | ||||||
| Range of adjustable measurement: | -6.0mm～＋6.0mm ( 0.05mm/step ) | ||||||
| Dimension of machine: | 510( L ) ×490( W ) ×400( H )mm | ||||||
| Weight: | 50KG | ||||||
| Voltage: | AC100V/220V (60/50Hz) | ||||||
| Electric power consumption | <=500W | ||||||
| Power | 380W | ||||||
| Grinding wheel group capulity | 60~100mm | ||||||
| Edge type | Sharp edge (rim frame), flat edge (rimless frame) | ||||||
| Noise | <=60db+ 125% | ||||||
|
Machine head |
Corrosion prevention, stainless steel |
||||||
