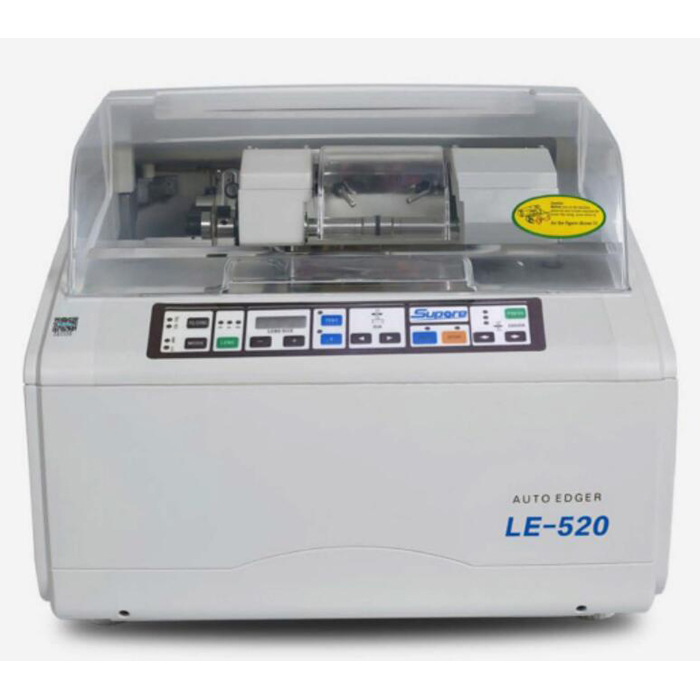

LE-520 PC Auto lens edger (3rd mainboard, Lens sliding prevention, glass, resion, CR, PC lens, flat polishing, higher speed)
Abstract:
Equipped with specific materials, the LE-520 auto edger inherits the design style of LE series auto edger, easy to operate and able to process lens size accurately and stably.
Functions:
- Beveling polishing function
- Pressurizing automatically
- PC auto edger
- The 3rd generation mainboard
- Double Bevel model
- Lens sliding prevention
Specifications:
Size: about 530 x 500 x 400mm
Weight: about 50Kg
Rated frequency: 50 ~ 60Hz
Noise: 50DB
Voltage:220V±10% ( The voltage is 110V :requires specific ) Electric power consumption: 500W
Main motor power: 380W
Work environment requirements: 5°C~40°C
Packing details(for 1pc)
Name | Length /cm | Width /cm | Height /cm | Volume /m3 | Volume weight/ 0.006 /kg | Net weight /kg | Gross weight /kg |
Water tank&water pump | 40 | 38 | 32 | 0.05 | 8.11 | 4 | 5.18 |
Main machine | 70 | 66 | 63 | 0.3 | 49 | 42 | 49 |
Table |
|
|
|
|
|
|
|
Total |
0.35 |
|
46 | 54.18 |
Click below link to check the difference for LE series Lens Edgers
