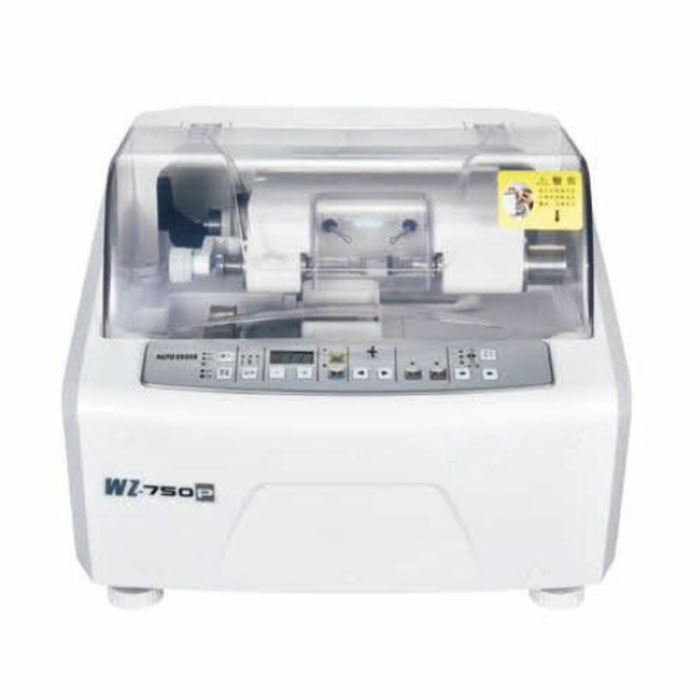

WZ-750P Auto lens edger, processing CR, GL, PC, high index lenses, up and down water outlet, with lamp, Spinning and twisting clamp type clamping template, V edge and polishing
Price
$
Login
Item#
WZ-750P
已选清单
0种
0件
Specification
1) Main machine+Large cabinet+water tank and pump
2) Main machine+Large cabinet
3) Main machine+water tank and pump
4) Only main machine
Description
| Technical Parameter: | |||||||
| Grinding disc clamp force | 0.5~ 0.75MP | ||||||
| Lens material | CR, GL, PC, high index | ||||||
|
Water outlet method |
Up and down water outlet |
||||||
|
Template clamping method |
Spinning and twisting clamp type clamping template |
||||||
| Machine size | 550* 470* 410mm | ||||||
| Wheel diameter | 100mm | ||||||
| Working tempreture | 5~40℃ | ||||||
| Diameter of processed lenses: | Min22mm Max800mm | ||||||
| Range of adjustable measurement: | -6.0mm～＋6.0mm( 0.05mm/step ) | ||||||
| Dimension of machine: | 510( L )× 490( W )× 400( H )mm | ||||||
| Weight: | 50KG | ||||||
| Voltage: | AC100V/ 220V(60/50Hz) | ||||||
| Electric power consumption | ≤500W | ||||||
| Power | 380W | ||||||
| Grinding wheel group capulity | 60~100mm (with V edge polishing) | ||||||
| Edge type | Resin sharp edge, flat edge, high index sharp edge (sharp edge 3/7,4/6 selectable), V polishing | ||||||
| Noise | ≤60db+125% | ||||||
|
Machine head |
Corrosion prevention, stainless steel | ||||||
Packing detail:
Packing size/cm
Gross weight/kg
Main machine
77x70x61, 0.33cbm
49kg
Water tank and pump
41x32x27, 0.036cbm
4.3kg
Table
69x68x13, 0.061cbm
21.5kg
