VT-700 Auto phoropter, 9.7 inch 180° touch screen
Price
$
Login
Item#
VT-700
Abstract
9.7 inch touch screen | Jackson Cross Cylinder 0.25D & 0.50D
已选清单
0种
0件
Description
CE
Features:

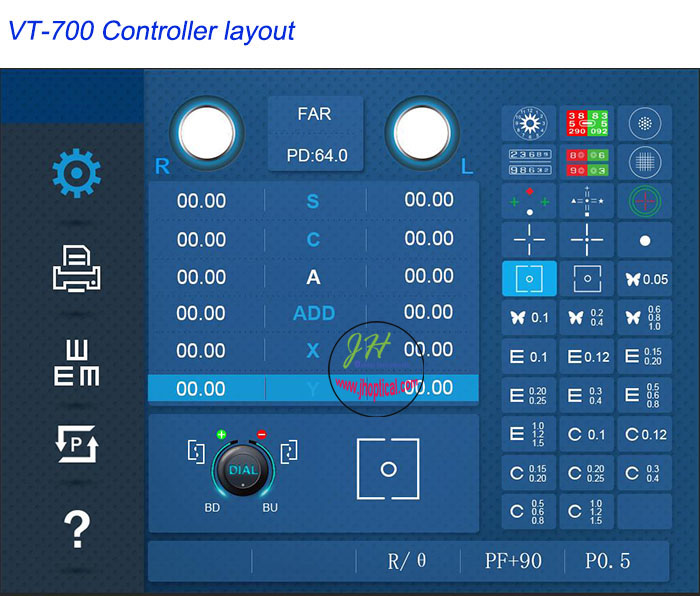

1.The 9.7 inch touch screen.
2.Easy to update the program.
3.The 180 degree rotating screen providing the direct communication with customers.
4.Various near visual and facilitating icons built in.
5.Abundant online functions.
6.Elegant with exquisite workmanship.
7.More allurate measurement.
8.True color touch screen.
| Test specification | |||||||
| Sphere: | -29.00~+26.75D (step:0.12D/0.25D/0.5D/1D/2D/3D) | ||||||
| Cylinder: | 0.00~8.75D (step:0.25D/0.5D/1D/2D/3D) | ||||||
| Cylinder axis: | 0~180° (step : 1/5/15/30/45°) | ||||||
| PD: | Far : 48~80mm Near : 45~75mm (step:0.5/1.0mm) | ||||||
| Working distance: | 35~70cm (step: 5 cm ) | ||||||
| Prism: | 0~20Δ (step 0.1Δ/0.2Δ/0.5Δ/1Δ/2Δ) | ||||||
| Jackson cross cylinder: | Jackson Cross Cylinder 0.25D Jackson Cross Cylinder 0.5D | ||||||
| 0.25D Dual Cross Cylinder(separation prism) | |||||||
| Ophthalmoscope: | +1.5D，+2.0D （measuring distance 67cm, 50cm） | ||||||
| Size and weight | |||||||
| Body of main engine: | 362(W) × 83(D) × 299(H)mm ,3.5kg | ||||||
| Keyboard: | 215(W) × 230(D) × 226(H)mm ,1.5kg | ||||||
| Junction box: | 266(W) × 72(D) × 240(H)mm ,1.3kg | ||||||
| Voltage: | AC100~240V, 50/60Hz | ||||||
| Power: | 90VA | ||||||
| Auxiliary lens | |||||||
| Pinhole lens: | Ø1mm | ||||||
| Maddox: | Right eye (horizon), left eye (vertical) | ||||||
| Red and green lens: | Right eye(red) , left eye (green) | ||||||
| Polaroid: | Right eye(135° , 45° ), left eye (45° , 135° ) | ||||||
| Separation prism: | Right eye(6ΔBU), Left eye(10ΔBI) | ||||||
| Solid suprachiasmatic cylinder: | Jackson Cross Cylinder ±0.50D , Axis fixation90° | ||||||
| Visual degree: | 32° | ||||||
Note: 2024: without line 20/25
