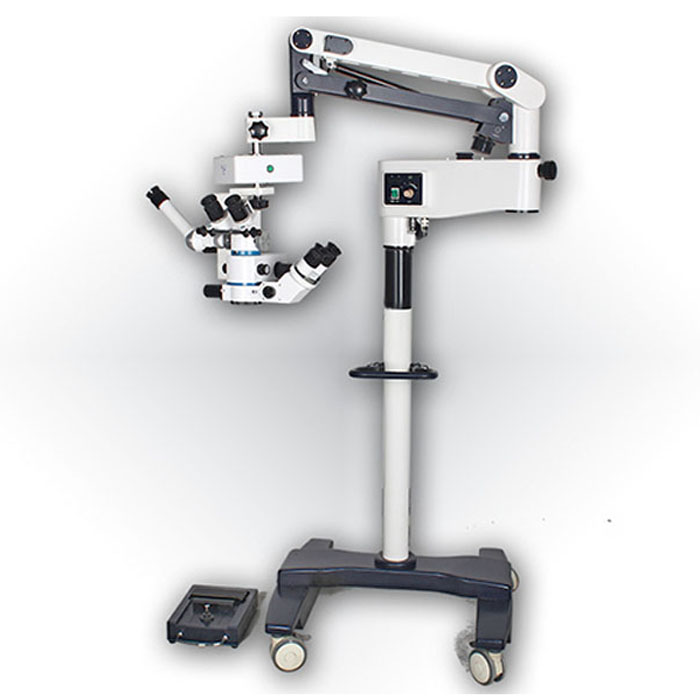

Description
CE
| Standard configuration | |||||||
| Binocular primary eyepiece, | |||||||
| Binocular assistant eyepiece, | |||||||
| Five gear drum zoom system, | |||||||
| X-y plane shifter, | |||||||
| New balance frame | |||||||
| LED lighting | |||||||
| Options | |||||||
| Beam splitter | |||||||
| Camera interface | |||||||
| CCD interface | |||||||
| Monocular teaching mirror | |||||||
| Asbstract: | |||||||
| With retinal protection devices | |||||||
| It can be used by series ophthalmic microsurgery. |
| Specification: | |||||||
| 1、The main microscope: | |||||||
| Parallel light five-step magnification zoom system | |||||||
| Zoom ratio: 0.4—2.5 , Magnification: 3.5X、5.4X、8.5X、13.5X、21X | |||||||
| Field of view diameter:Φ68、Φ43、Φ27.5、Φ17.5、Φ11mm | |||||||
| Eyepiece visual angle:45° , with adjuster of PD(55mm - 75mm) | |||||||
| 2、Vice microscope and the main microscope at a 90 °postural, the same light route, magnification:6x.10x.16x(3 step disposition) | |||||||
| 3、Eyepiece: main microscope 10X/22B vice microscope:12.5X/18B | |||||||
| 4、Working Distance: 200mm | |||||||
| 5、6° +0°Coaxial cold light source fiber optic illumination,illumination≥80000Lx ,Lighting bulbs: 15V/150W | |||||||
| 6、With retinal protection devices | |||||||
| 7、X-Y plane mover,moving range X-Y:40mm.(Can be reset to zero) | |||||||
| 8、Motorized fine tunning system by foot control, the range of fine focusing: 40mm | |||||||
| 9、The microscope can be front and back pitching adjustable, pitching range: -5°-10° | |||||||
| 10、The maximal spread radius of the cross arm: 1200mm Vertical adjustment range: 850mm - 1350mm | |||||||
| 11、Newest design balanced frame | |||||||
| 12、Optional parts: Beam splitter, digital SLR camera interface, CCD video interface, HD video camera, HD display. | |||||||
| It can be used by series ophthalmic microsurgery. |
