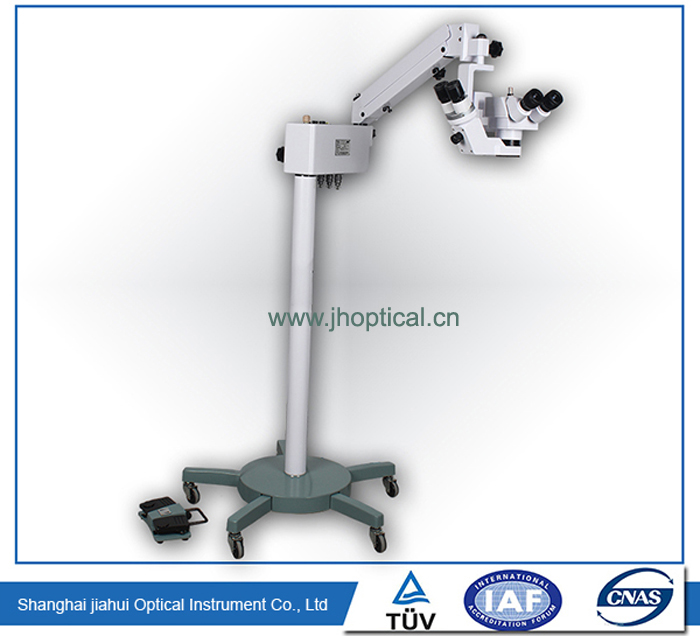

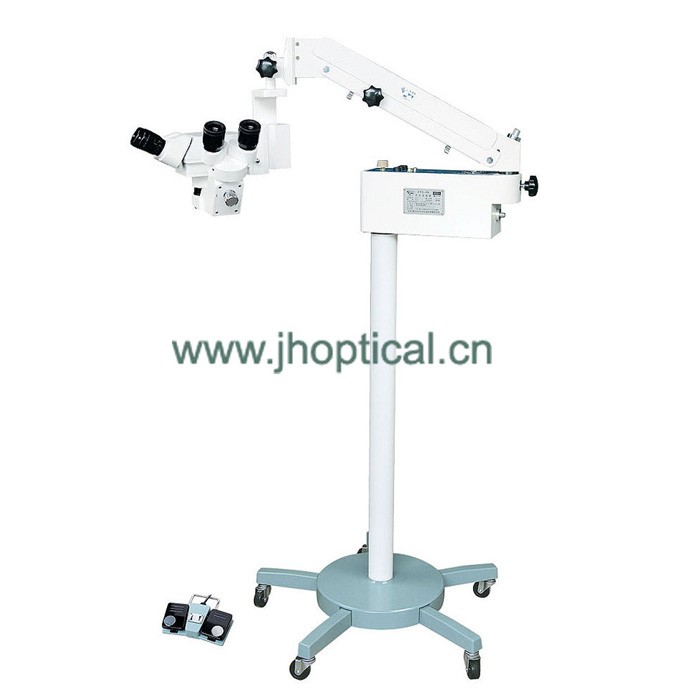

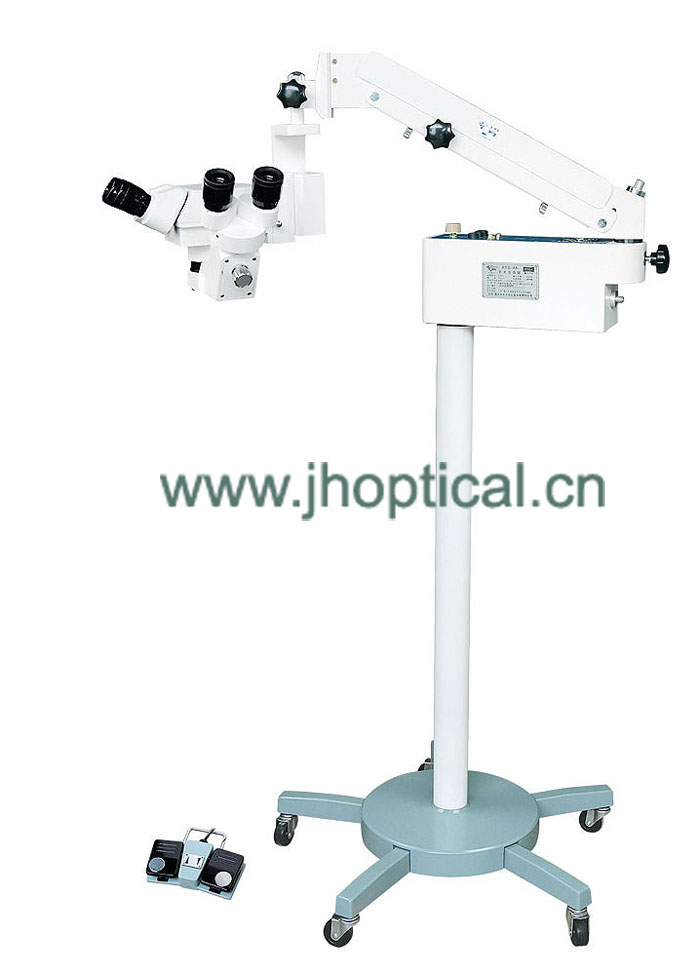

XTS-4C Ophthalmic operating microscope
Price
$
Login
Item#
XTS-4C
已选清单
0种
0件
Description
CE
| Standard configuration | |||||||
| Binocular primary eyepiece plus binocular assistant eyepiece | |||||||
| Pedal electric fine adjustment | |||||||
| Lightweight balancing rack | |||||||
| Options | |||||||
| Beam splitter | |||||||
| Camera interface | |||||||
| Beam splitter (built-in) | |||||||
| Abstract: | |||||||
| It can be used in ophthalmic cataract , glaucoma and so on simple microsurgery operation. |
| Specification: | |||||||
| 1. Double binocular with 90°position, the vice mirror and main mirror forming a 12°light route angle. | |||||||
| 2. The main microscope: eyepiece:12.5x/22B, the adjustable range of PD:54mm~75mm | |||||||
| 3. Working distance:200mm | |||||||
| 4. Magnification of main microscope:10x, magnification of vice microscope:4x | |||||||
| 5. The visual field diameter of main microscope: Φ27.5mm | |||||||
| 6. Illumination: 0°coaxial illumination, optional:Xenon illumination and double bulbs convert. | |||||||
| 7. Illumination bulb:8V/50W imported Halogen lamp | |||||||
| 8. The maximum illuminance：30000LX | |||||||
| 9. Fine-tune up-down range:40mm | |||||||
| 10. Balanced frame | |||||||
| 11. Spring arm adjustable range:250mm | |||||||
| 12. Motorized fine-tune up-down speed:2.5mm/s (motorized up-down by foot control) | |||||||
| 13. Adjustable range: ±180°horizontal | |||||||
| 14. The maximum gyration radius of cross arm:800mm | |||||||
| 15. Power:220V±10% 50Hz | |||||||
| It can be used in ophthalmic cataract , glaucoma and so on simple microsurgery operation. |
