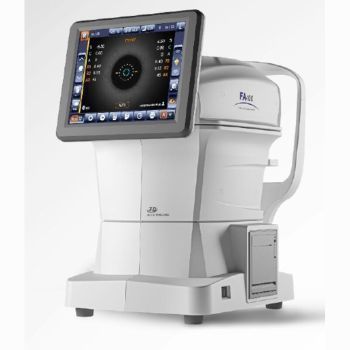

FA-100K Fully Automatic Refractometer/ Keratometer, 3D tracking

Price

$ Login

Item#

FA-100K

已选清单

0种 0件

Send Inquiry

Add To Cart

Description

Features:
1)3D tracking and auto focus.Just retate to any position,it will automatically focus the eye and get the value.
2)Refractive measurement with hexagon prism.With high quality of CCD,it provides unmatched accuracy and reliability.
3)Built-in thermal printer.Automatic printing and paper cutting.
4)10.4" tilt and swivel monitor.Since the screen can be continuously tilted and swiveled,it can be placed anywhere in an examination area.Flexible layout and space saving design contribute to improved productivity any efficiency.

SPECIFICATIONS
Refractometer
Vertex distance	0mm, 12mm, 13.75mm, 15mm
Spherical	-25~+20D(VD=12) 0.12D/0.25D step
Cylinder	-8~+8D 0.12D/0.25D step
Axis	0~180° 1° step
Cylinder form	-,+,±
PD	5~90mm,1mm step
Min.pupil size	2.0mm
Keratometry
Radius of curvature	5.0~10mm (increment: 0.01mm)
Corneal power	33.75~67.5D (when corner equivalent refractive index is 1.337)
	(increment selectable from 0.12, 0.25D)
Corneal astigmatism	0.0~8.00D (increment selectable from 0.12, 0.25D)
Axis	1~180° (increment:1°)
Corneal diameter	2.0~14.0mm (increment:0.1mm)
Corneal diameter	2.0~15.0mm (increment:1mm)
Others
Chart	Follow-up colorful fogging chart system
Display	10.4" TFT LCD
Print	57mm Thermal printer
Power supply	100-240V 50Hz 60VA
Serial interface	USB, RS-232C, bluetooth, WIFI, 4G
Dimension	445mm(W) x 287(D) x 490mm(H)
Weight	~20kg
Specifications are tentative and subject to change.
