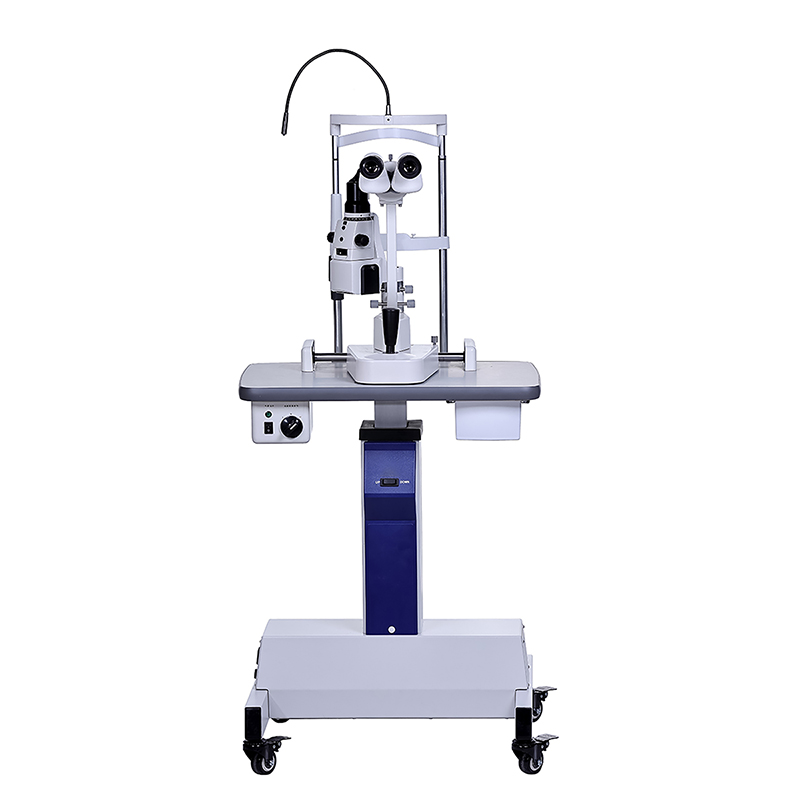

YZ5X1 Five Magnifiers Slit Lamp
Price
$
Login
Item#
YZ5X1
Abstract
Galilean | 6x,10×,16×,25x,40x | Eyepiece:12.5x | Slit: 0-14mm | Inclination: None | Filter: 4 pcs
已选清单
0种
0件
Specification
1) with metal plate
2) with YT2A table
Description
CE,ISO13485
Abstract:
This product is with complete function and reliable performance could meet the ophthalmic requirements.
Characteristics:
* Galilean stereoscopic microscope provides the prectitioners unsurpassed clarity and sharpness,and avoid double images.
* Five-step drum magnification.
* Optional accessories: teaching tube,CCD camera and Tonometer.
| Specifications: | ||||
| Microscope Type | Galilean stereoscope microscope | |||
| Objective Magnification | Five Steps drum Magnifications | |||
| Eye Piece | 12.5x | |||
| Magnifications（Field of View） | 6x（φ33mm）,10x（φ22.5mm）,16x（φ14mm）,25x（φ8.8mm）,40x（φ5.5mm） | |||
| Pupil Distance | 55mm～75mm | |||
| Diopter Adjustment | -5D~+3D | |||
| Slit Width | 0mm～14mm adjustable (slit is round when the slit width is 14mm) | |||
| Slit Height | 1mm～14mm adjustable | |||
| Slit Angle | 0°～180° adjustable | |||
| Slit Inclination | NO | |||
| Diameter of Light Spot | φ14mm, φ9mm, φ5.5mm, φ0.3mm | |||
| Filter | Heat Absorption、Redfree、Cobalt Blue | |||
| Illumination Bulb | 6V/20W Halogen Bulb | |||
| Input Voltage | AC220V±22 V ;AC110V±11 V | |||
| Electrical Safety Standard | Conform to Standard: IEC601-1,Class I,Type B | |||
| Packing Volume | 720mm x 495mm x 480mm | |||
| Total Weight | 23Kg | |||
| Optional Accessories | Applanation Tonometer、 Trihedron Lens、Gonioscope、Funduscope、Aspheric Lens,Teaching tube. | |||
