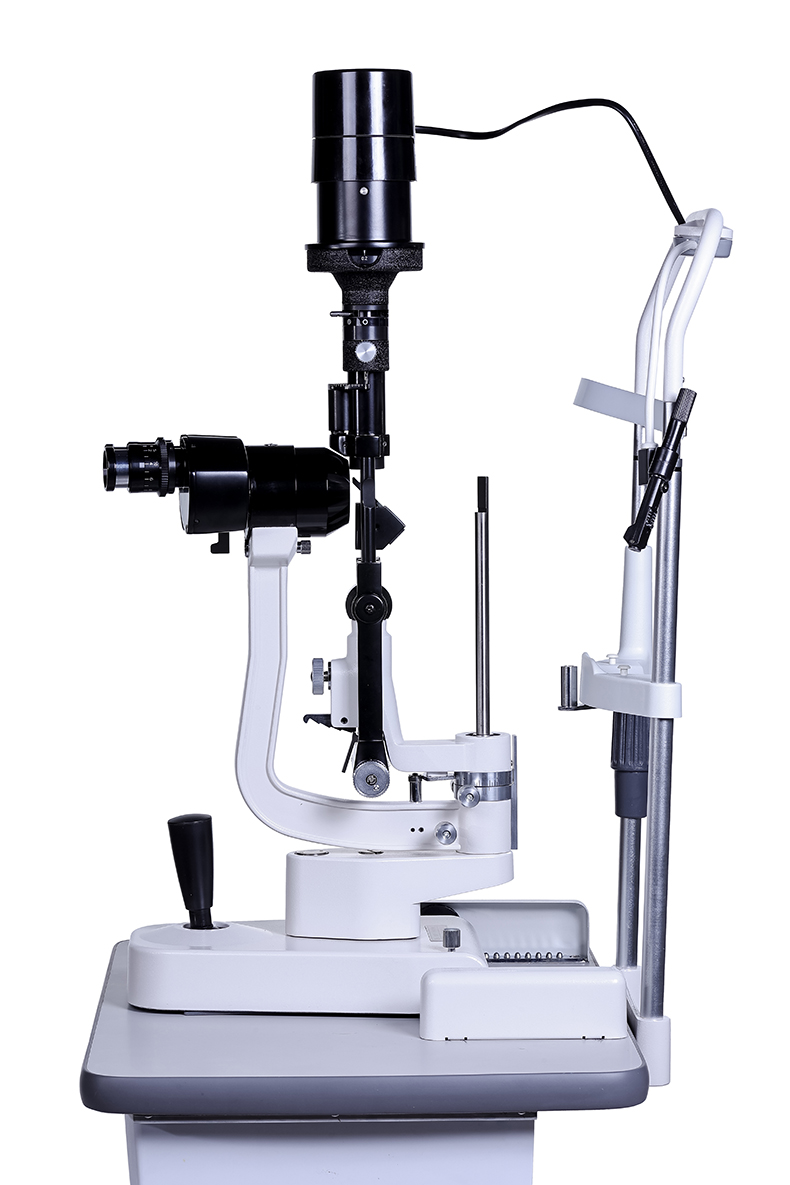

YZ5F Five Magnifiers Slit Lamp

Price

$ Login

Item#

YZ5F

Abstract

已选清单

0种 0件

Specification

1) with metal plate

2) with table

Send Inquiry

Add To Cart

Description

CE,ISO13485

Abstract:
The product has more excellent optical performance and can be connected with international standard interface.

Characteristics:
* Converging stereoscope microscope provides the clear images.
* Imported Schott optics from Germany reduces optical distortion, increases clarity and depth of focus.
* All the optical lenses are moistureproof, mildewproof and anti-reflected treated.
* Three-step magnifications (10X, 16X, 25.6X) can be changed by lever and 10X&16X eyepieces are available.
* All the joints can be connected by accessories with international standards.

Specificatiions:
Microscope Type	Converging stereoscope microscope
Objective Magnification	Two-Step Magnifications
Eye Piece	10x,16x
Magnifications（Field of View）	10x（φ18mm）,16x（φ14.5mm） 16x（φ11.25mm）,25.6x（φ9mm）
Range of Pupil Distance	10x:55mm～82mm 16x:51mm~78mm
Diopter Adjustment	10x: ±8D 16x: ±10D
Slit Width	0mm～9mm adjustable(slit is round when the slit width is 9mm)
Slit Height	1mm～8mm adjustable
Slit Angle	0°～180° adjustable
Slit Inclination	5°，10°，15°，20° four steps adjustable.
Diameter of light spot	φ9mm, φ8mm, φ5mm, φ3mm, φ2mm, φ1mm, φ0.2mm
Filter	Heat Absorption, Grey, Redfree, Cobalt Blue
Illumination Bulb	12V/30W Halogen Bulb
Input Voltage	AC220V±22 V ;AC110V±11 V
Electrical Safety Standard	Conform to Standard:IEC601-1,Class I,Type B
Packing Volume	720mm x 495mm x 480mm
Total Weight	24Kg
Optional Accessories	R type,T type Applanation Tonometer,measuring eyepiece, Trihedron Lens、Gonioscope、Funduscope、Aspheric Lens
