Home Products Medical Ophthalmic Instruments Slit Lamp Microscope S Series Slit Lamp S360 Led 5 Magnifiers tower style Slit l
/upload/pro/S360-Led-5-Magnifiers-tower-style-Slit-lamp
  1. S360-Led-5-Magnifiers-tower-style-Slit-lamp
  2. S360-Led-5-Magnifiers-tower-style-Slit-lamp

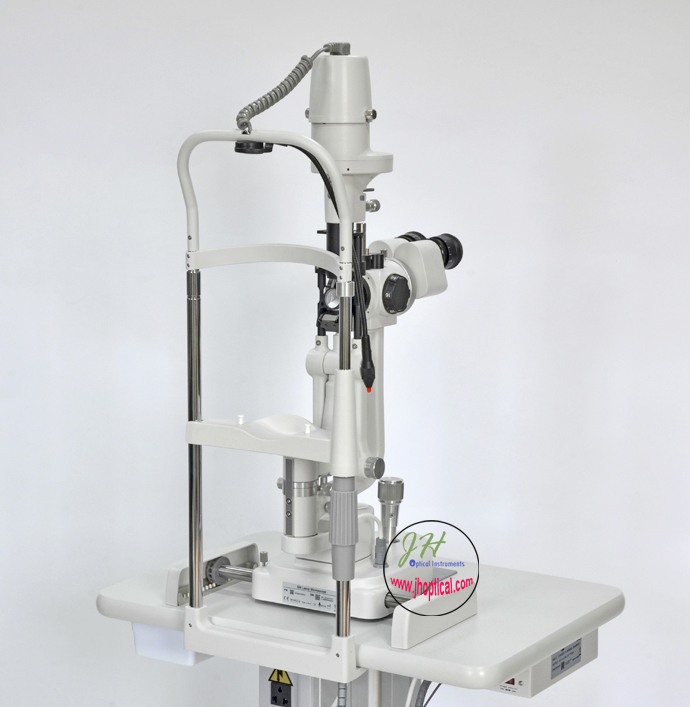

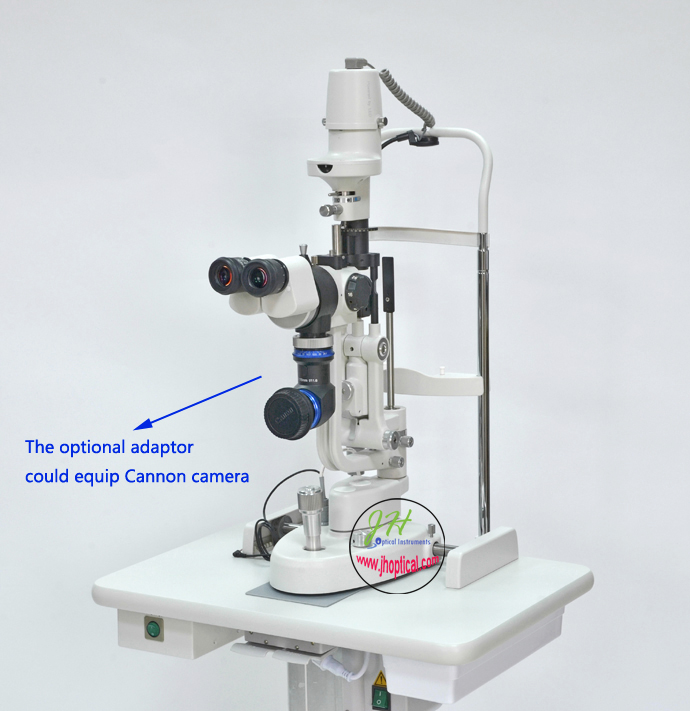

S360 Led 5 Magnifiers tower style Slit lamp

Item#:S360

Abstract:Style:Galilean 6.3X,10X,16X,25X,40X(5 steps,drum) Eyepiece:12.5X PD:52~80mm Diopter:+/-8D Lamp:LED Field of:Ø36.2mm(6X),Ø22.3mm(10X), Ø14mm(16X), Ø8.9mm(25X),Ø5.7mm(40X)

Moq:1

Price: $ Login /pcs

 Live Chat  Like
Description

CE


Microscope specifications
Microscope type: Galilean system
Magnification changer: Revolving drum(5 steps)
Total magnification: 6X,10X,16X,25X,40X
Ocular magnification: 12.5 X
Angle between Eyepieces
13°
Ocular field: Ø18mm
Inter pupillary distance: 52mm~78mm
Diopter adjustment: +6D to -6D
Object image field Ø in mm: Ø36.2mm(6X), Ø22.3mm(10X), Ø14mm(16X), Ø8.9mm(25X), Ø5.7mm(40X)
Slit illumination
Slit image width: 0~14mmcontinuous
Slit image length: 1~14mmcontinuous
Light source: 3v/3w led light bulb
Slit image radial range: 0~180°
Filters: Heat aborption, grey, redfree(green), cobalt blue
Illumination fields Ø in mm: 0.2/1/3/5/10/14/ 1~14mm continuous
Illumination intensity: ≥60KLX
Instument base
Operation: Single handed 3-dimensional operation of the joystick
Range of adjustment: 115mm(longitudinal), 110mm(lateral), 30mm(vertical), 15mm(fine)
Chin-rest
Fixation: Red led
Vertical adjustment: 80mm
Power Supply
Input voltage: 220v/110v ±10%
Input frequency: 50Hz/60Hz
Output power: 10VA(max)
Output voltage: Light source 3V continuous,fixation 3V
Ambient conditions
Working  
Temperature: +5°C~+40°C
Relative humidity: ≤80%
Air pressure: 800hPa~1060hPa
Storage  
Temperature: -40°C~+55°C
Relative humidity: ≤93%
Air pressure: 700hPa~1060hPa
Transportation
Temperature: -40°C~+55°C
Relative humidity: ≤93%
Air pressure: 700hPa~1060hPa
Packaging
Carton: 740mmX450mmX500mm
Gross weight: 24Kg (without electrical desktop and options)
Net weight: 16Kg (without electrical desktop and options)
