    HomeProducts Medical Ophthalmic Instruments Slit Lamp Microscope S Series Slit Lamp S260 LED 5 Magnifiers Zeiss style Slit lamp
    S260-LED-5-Magnifiers-Slit-lamp
    1. S260-LED-5-Magnifiers-Slit-lamp
    2. S260-LED-5-Magnifiers-Slit-lamp

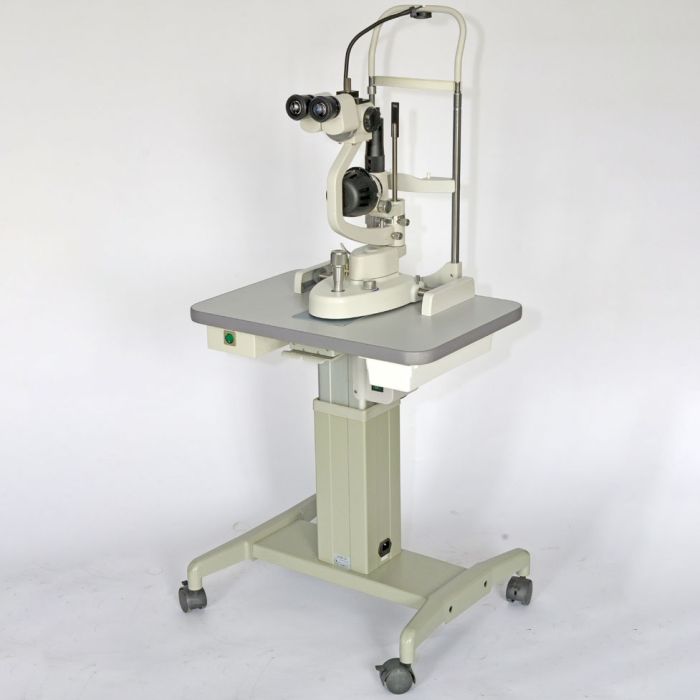

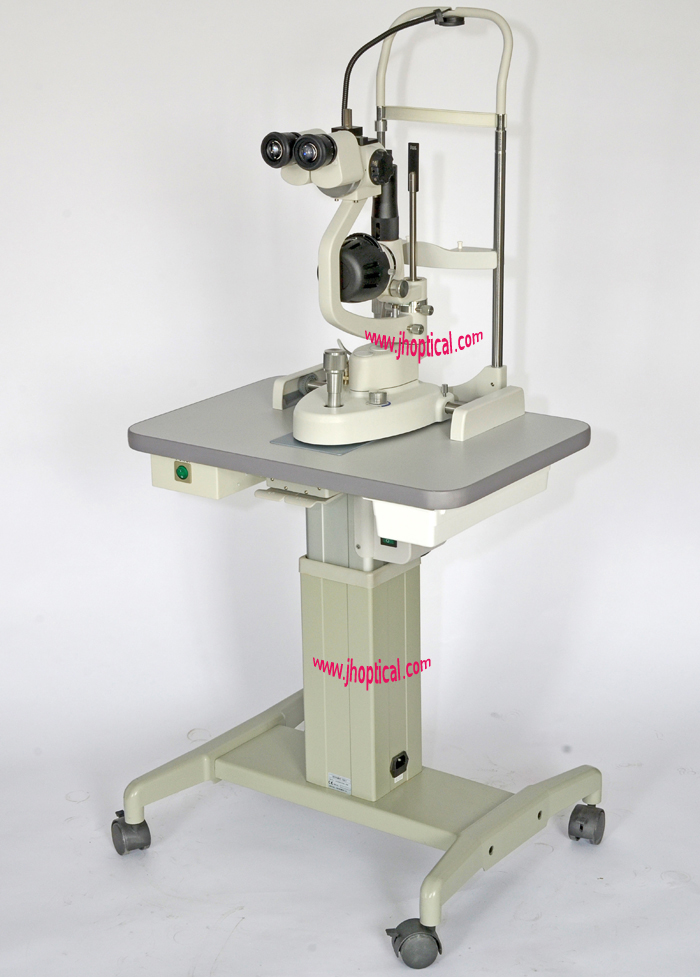

    S260 LED 5 Magnifiers Zeiss style Slit lamp

    Price
    $ Login
    Item#
    S260
    Abstract
    Style:Galilean 6X,10X,16X,25X,40X(5 steps,drum) Eyepiece:12.5X PD:52~78mm Diopter:+/-6D Lamp:LED Field of:Ø34.7(6X),Ø22(10X),Ø13.5(16X),Ø8.5(25X),Ø5.5(40X)
    已选清单
    0种 0件
    Specification
    1) without table
    2) with table
    Quantity
    Amt($):
    Selected
    Send Inquiry
    Add To Cart
     Like
    Description

    CE


    5 magnifiers LED illumination Slit Lamp microscope

    Product Abstract:
    ■  The Galilean-type magnification system provides 6X, 10X, 16X, 25X and 40X (professional configuration) .
    ■  The excellent optical system can give you a clear and clean image.
    ■  The 14mm aperture can help you observe the whole cornea and iris easily, and it is convenient to examine the foreign object.
    ■  The high eyepoint and open field eyepieces design can guarantee the user to get a clear image even when you wear spectacles.
    ■  The modular design is convenient to connect beam splitter, digital camera adapter and the CCD adapter, thus users can upgrade the standard type Slit Lamp to digital camera system or the image capture system.
    ■  The adapter function is powerful, both digital single lens reflex camera and the digital vidicon are compatible.


    Microscope specifications
    Microscope type:  Galilean system
    Magnification changer: Revolving drum (5 steps)
    Total magnification:   6X, 10X, 16X, 25X, 40X
    Angle between Eyepieces
    13°
    Ocular magnification:  12.5 X
    Ocular field: Ø18mm
    Inter pupillary distance:  52mm~ 78mm
    Diopter adjustment:   +6D to -6D
    Object image field Ø in mm:   Ø34.7mm (6X), Ø22mm (10X), Ø13.5mm (16X), Ø8.5mm (25X), Ø5.5mm (40X)
    Slit illumination
    Slit image width:    0~14mm continuous (slit becomes a circle at 14mm)
    Slit image length:     1~14mm continuous
    Lamp 3v LED module
    Slit image radial range:   0~180°
    Filters:  Heat aborption, redfree(green), cobalt blue
    Illumination fields Ø in mm: Ø0.2mm, Ø3.5mm, Ø8mm, Ø14mm
    Illumination intensity:   ≥60KLX
    Instument base
    Operation:   Single handed 3-dimensional operation of the joystick
    Range of adjustment:  115mm (longitudinal), 110mm (lateral), 30mm (vertical), 15mm (fine)
    Chin-rest
    Fixation:     Led
    Vertical adjustment:    80mm
    Power Supply
    Input voltage:   220v/ 110v ±10%
    Input frequency:   50Hz/ 60Hz
    Output power:     10VA (max)
    Output voltage:   Light source 3V continuous, fixation 3V
    Ambient conditions
    Working
    Temperature:   +5°C~ +40°C
    Relative humidity: ≤80%
    Air pressure:  800hPa~ 1060hPa
    Storage  
    Temperature:        -40°C~ +55°C
    Relative humidity: ≤93%
    Air pressure:         700hPa~ 1060hPa
    Transportation
    Temperature:        -40°C~ +55°C
    Relative humidity: ≤93%
    Air pressure:         700hPa~ 1060hPa
    Packaging
    Carton:     740mmX 450mmX 500mm
    Gross weight:  20.9Kg (without electrical desktop and options)
    Net weight:     15.4Kg (without electrical desktop and options)
