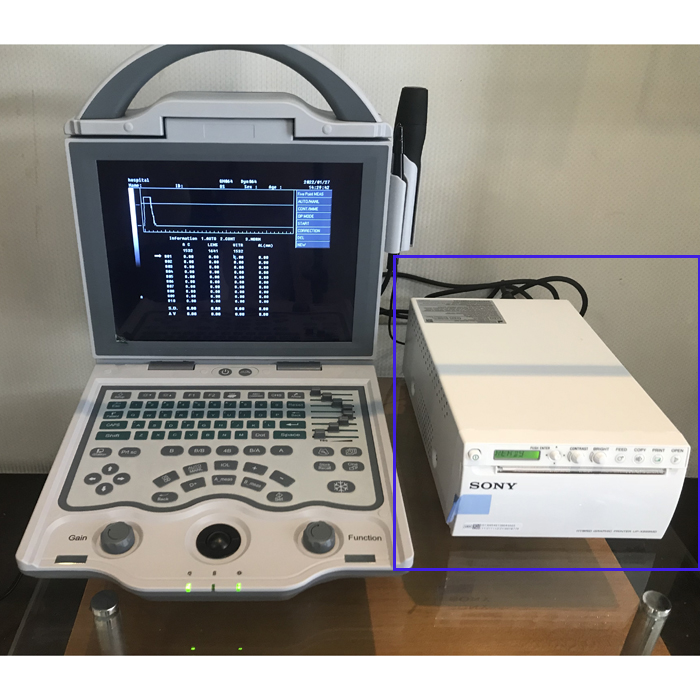

ODU5 Ophthalmic Ultrasound A/B Scanner

Item# ODU5

Get Quote

Add to Quote

Description

📦 Packaging Detail

Unit:PCS/CTNS/cm/kg/m³

Desc.	Length	Width	Height	NW.	GW.	CBM	CBM/5000	CBM/6000
Scanner	40	40	50	5	10	0.08	16	13.333
Trolley	76	65	55	26	33	0.272	54.4	45.333
Total				31	43	0.352	70.4	58.666

👁️ ODU5 Ophthalmic Ultrasound A/B Scanner – Precision Eye Imaging for Modern Clinics

CE, ISO13485 Certified

This device does not hold FDA clearance. However, it can be sold to MIAMI, USA.

ODU5 – Ophthalmic A/B Mode Ultrasound Scanner

Advanced ARM9 Embedded Control System with FPGA signal processing and carefully selected ultrasonic hardware for reliable performance.
10.4-inch high-resolution LCD screen for clear, detailed imaging.
Menu operation language: Chinese / English.
Double probe sockets for flexible workflow.
A-mode probe: 10MHz imported probe with fixation light.
B-mode probe: 10MHz imported transducer.
Display modes: B, B/B, 4B, B/A, A.
Gain range: 0–120dB.
Dynamic range: 30–100dB, visual and adjustable.
Gray scale: 256 levels.
Intelligent TGC adjustment: 8 segments.
Built-in D disk: 4GB for mass data, images, and reports.
Report function: print screen, IOL report, case report with picture, and more.

A Scan
Resolution:	0.01mm
Gain adjustable:	0–120dB
Measurement range:	15–40mm (1640m/s)
Accuracy:	±0.1mm
Measuring parameters:	ACD, LENS, Vitreous body Length, axial length.
Eye mode:	normal / aphakia / dense cataract / PMMA, Acrylic & Silicon for Pseudo Phakic eyes
Measuring mode:	Contact and Immersion, automatic and manual.
Calculation:	Std. deviation, average, automatic measuring of 10 groups and average, with waveform, results correctable.
IOL Formula:	SRK-II, SRK-T, BINKHORST, HOLLADAY, HOFFER-Q, HAIGIS

B Scan
Scan mode:	High-accuracy stepping motor drive sector scan.
Scan angle:	53°
Display depth:	0–56mm
Gray:	256
Frame frequency:	10 frames/s
Depth selection:	8
Frame correlation:	4
Edge enhancement:	4
Compression curve:	4
Post-processing:	8100 frames permanent image storage.
Cine loop:	256 frames, can measure the playback image.
Disk management:
General measurement:	Multi-electronic rule to measure distance, circumference, area (trace method, ellipse method), volume (ellipse method), angle, histogram, profile, stenosis and curvature, etc.
