KR-9000 Auto refractometer with keratometer, Dist: 0, 12, 13.75, 15, Sph: 0~ ±20.00D, Cyl: 0 ~±10.00D, Pd:45~85, Min.Pupil: Φ2.0, Corneal: 2~12
Price
$
Login
Item#
KR-9000
Abstract
SHP:-20D~+20D CLY: +/-10D PD:30~85mm VD:0.0/12.0/13.75/15.0 mm Radius of curvature:5.0~10mm Corneal Dia:2.0~12.0mm
已选清单
0种
0件
Description
CE
Product Abstract:
■ Three kinds of measurement model is optional.
■ With corneal curvature and dioptre measurement function(KR-9000)most each record 10 times,
■ Automatic display representative value Intuitive interface, convenient adjustment, the VD value, the precision and print mode, etc

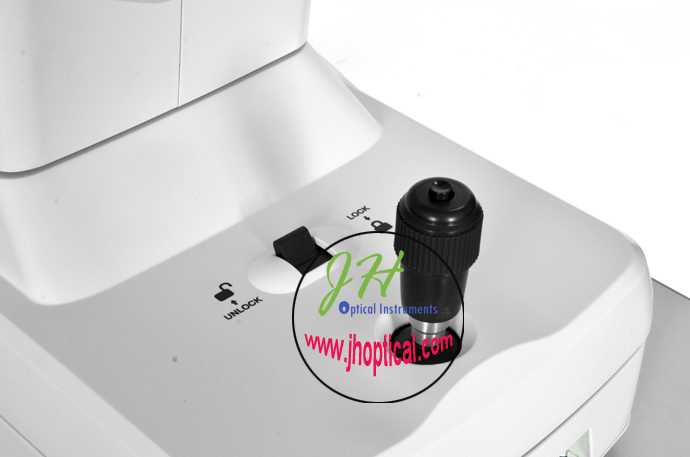

■ One key lock function, Convenient and practical Fast thermal printer
Please click if you need => Optometry Table.
Specification: | ||
Measurement mode | K/R mode | Refractive and Keratometer measurement. |
REF mode | Refractive measurement | |
KEF mode | Corneal curvature measurement | |
Refractive measurement | Vertex Distance | 0.0,12.0,13.75,15.0 mm |
Sphere | -20.00~+20.00D | |
(0.12/0.25D step)(VD=12mm) | ||
Cylinder | 0.00~±10.00D (0.12/0.25D step) | |
Axis | 1°~180°( 1°step ) | |
Pupil Distance | 30~85 mm | |
Min. pupil diameter measurable | ¢2.0mm | |
Target | Automatic fogging target | |
Corneal curvature measurement | Radius of curvature | 5~10mm(0.01mmstep) |
Corneal Refraction | 33.00~67.00D(0.12/0.25Dstep) | |
Corneal Astigmatism | 0.00~-15.00D(0.12/0.25Dstep) | |
Angle of corneal | 1°~180°(1°step) | |
Corneal diameter | 2.0~12.00mm | |
Hardware specification | Monitor | 5.7 inch Color LCD |
Printer | Fast thermal printer | |
Power saving function | OFF, 5, 15 mins (selectable) | |
Power supply | AC110~220 V,50/60HZ | |
Dimensions/weight | 288(W)*500(D)*480(H)mm/14kg |
