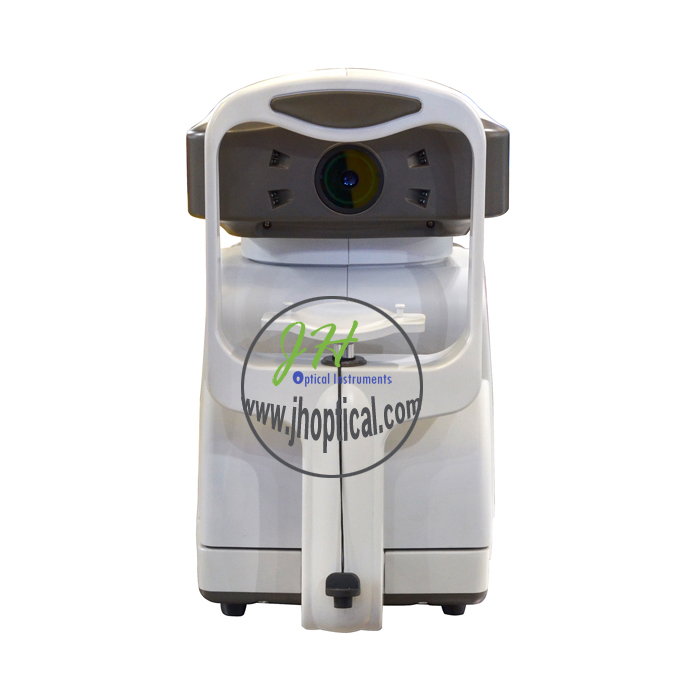

FA-6800K Auto refractometer with keratometer, Dist: 0, 12, 13.75, Sph: 0~ ±20.00D, Cyl: 0~ ±8.00D, Pd:45~88, Min.Pupil: Φ2.0, Corneal: 2~14
Price
$
Login
Item#
FA-6800K
Abstract
SHP:-20D~+20D CLY: +/-8D PD:45~88mm VD:0/12/13.75mm Radius of curvature:5.0~10mm Corneal Dia:2.0~14... All same with FA-6500 but the appearance of product.
已选清单
0种
0件
Description
CE
Please click if you need => Optometry Table.
| Specification: | ||||
| Range of measurement | ||||
| Sphere | -20~+20D(VD=12) 0.125D step | |||
| Cylinder | -8~+8D 0.125D step | |||
| Axis | 0~180010step | |||
| PD | 45~88mm,1mm step | |||
| VD | 0mm,12mm,13.75mm | |||
| Min.Pupil Size | Ф2.0mm | |||
| Keratometry | ||||
| Radius of curvature | 5.0~10mm(increment:0.01mm) | |||
| Corneal power | 33.75~67.5D(when corner equivalent refractive index is 1.337) | |||
| (increment selectable from 0.12,0.25D) | ||||
| Corneal astigmatism | 0.0~8.00D(increment selectable from 0.12,0.25D) | |||
| Axis | 1~1800(increment:10) | |||
| Corneal diameter | 2.0~14.0mm(increment:0.1mm) | |||
| Memory of data | 10 measure value for each right and left eye | |||
| Others | ||||
| Chart | Follow-up colorful fogging chart system | |||
| Display | 7" TFT LCD | |||
| Thermal printer | ||||
| Power supply | 220V± 10% 50HZ 60VA | |||
| Dimension | 478*268*472mm | |||
| Weight | ~20kg(44lb) | |||
