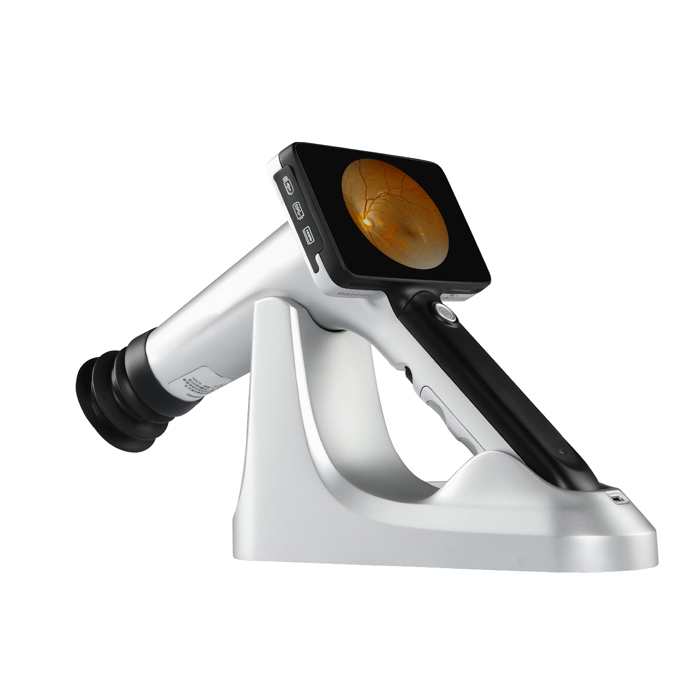

PFC-11 Luna Plus Portable Fundus Camera

Item# PFC-11

Certs:

FDA CE

Get Quote

Add to Quote

Description

Packaging Detail

Unit: ctns,cm,kg,m³,pcs

Desc.	Length	Width	Height	NW.	GW.	CBM	CBM/5000	CBM/6000
1pcs	41	25	37	3.5	4.5	0.038	7.6	6.333
Total				3.5	4.5	0.038	7.6	6.333

PFC-11 Luna Plus Portable Fundus Camera

CE & FDA Certified

Why Choose the PFC-11 Luna Plus?

The PFC-11 Luna Plus is a portable, non-mydriatic fundus camera designed for fast, comfortable retinal imaging in clinics, screening programs, and field settings. With a 50-degree field of view, 10-megapixel resolution, and an intuitive Android-based patient record system, it delivers reliable results without the need for pupil dilation.

Key Features

Portable fundus camera — lightweight and easy to carry for mobile examinations
Non-mydriatic retina camera — capture clear images without dilating the pupil
50-degree field of view — wide coverage for comprehensive retinal assessment
10-megapixel resolution — sharp, detailed images for accurate diagnosis
5-target fixation — helps guide patient gaze for consistent imaging
Auto capture — simplifies operation and reduces user error
Android patient record management system — organize and review patient data directly on the device
4.7-inch touch screen with Wi-Fi, Bluetooth, and 4G transfer — easy connectivity and data sharing

Product Parameters

Product Parameters
Model	PFC-11
FOV	50 degree
Sensor resolution	10 Mega pixels
Optical resolution	>60lp/mm
Min. pupil	2.5mm
Focus	Manual/Auto focus
Flash mode	White LED and IR LED
Screen	4.7 inch TFT colored screen
Format	JPEG, MPEG-4/1, Dicom3.0,
Internal targets	5 targets fixation
Image transfer	USB3.0, WIFI, SD card, HDMI
Storage	4G+64G
Power	Li-on rechargeable battery 3.7V/3500mAh
Charging power	100-240VAC, 50/60Hz
Working time	>8 hours
Charging time	<2 hours
Net weight	530g(without base), 790g(with base)
Product Size	205 x 125 x 205mm
Portable case size	20 x 38 x 32cm, weight: 3.7kg
Packing carton size	41 x 25 x 37cm, weight: 4.5kg
