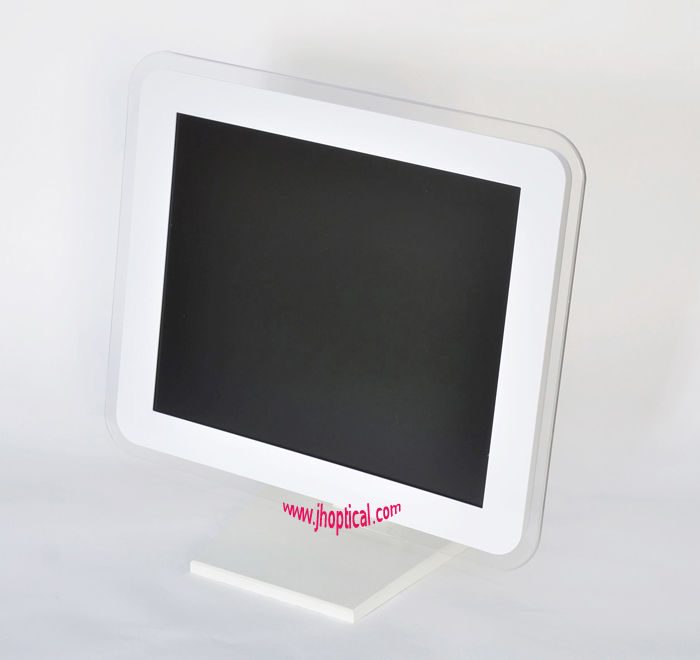

C901 17" LED Chart vision, mirror function, 2~7m, low vision:0.6~1.5m
Description
CE
Updated:
Reduce repetition between adjacent optotypes.
File path will be initialized when entering in multimedia file list every time.
The color Ishihara images has been optimized.
Product Abstract:
■ Vedio and audio playing function: It can play the vedio and audio files stored on SD card or on U disk.
■ Support extensible plug-in unit: Users can install their own test applications to the vison chart. This fuction satisfy customer’s desire of using user-defined tests.
■ We add 0.7 and 0.9 visus values to Decimal unit, which meets the common using habit of every user.
■ Equiped with a gravity- sensor. The vision chart can adjust the direction of the picture displayed on the screen. In this way the user can get a comfortable viewing angle no matter the vison chart is vertically or horizontally placed.
■ Gamma calibration fuction is realized in the contrast sensitivity test.
■ Real time optotype random display make the test accurate and reasonable.
■ Real time adjustment of red and green test chart
| Specifications: | |||||||
| LCD | 17-inch XGA Panel with LED backlit screen | ||||||
| Resolution: | 1208*1024 pixels | ||||||
| Distance | 2M-7M(in steps of 0.1m); 6ft~24ft (in step of 0.5ft) Low vision chart:0.6~1.5m(in step of 0.1m) | ||||||
| Remote control | IR | ||||||
| Remote control battery | AAA | ||||||
| Brightness | ≥2000 cd/m2 | ||||||
| Optotypes | E, C, Alphabet, Numbers, Children,Allen picture(normal and V type) | ||||||
| Special charts: |
ETDRS,contrast sensitivity test,contrast test,Ishihara,cross cylinder,astigmatic fan dial,cross grid,fixation spot test,stero test,red/green panel,worth four-dot test,red/green balance,traffic light,horizontal conincidences,vertical coincidences,schober Low vision chart(E,C,Alphabet,Numbers,Children(Allen pictures),"V" Style Optotypes |
||||||
| Mask type | Change of the background, Single mask, Horizontal mask,Vertical mask, Red/Green mask,contrast sensitivity | ||||||
| Visus unit | 5-Grade(3.7~53), Decimal(0.05~2.0), LogMAR(-0.3~1.3), Snellen(ft)(20/700~20/10), Snellen (M)(6/210~6/3) | ||||||
| Other functions | Video playing,image browsing,Randomization optotype playing,mirror function,screen save function,standby function. | ||||||
| Random display of optotypes |
Use with path folding mirror possible Screen-saver function |
||||||
| Specification parameter: | |||||||
| Power | Input: 110-230V AC +-10%, 50/60Hz,Output: 12V DC | ||||||
| Power consumption | 20 Watt(max) | ||||||
| Dimension | 480mm×430mm×40mm(L/W/H) | ||||||
| Net Weight | 2.0KGS | ||||||
| Working environment | |||||||
| Temperature | +5℃～+40℃ | ||||||
| Relative humidity | ≤80% | ||||||
| Air pressure | 800hPa～1060hPa | ||||||
| Storing environment | |||||||
| Temperature | －20℃～＋55℃ | ||||||
| Relative humidity | ≤93％ | ||||||
| Air pressure | 700hPa～1060hPa | ||||||
| Transport environment | |||||||
| Temperature | -20℃～＋55℃ | ||||||
| Relative humidity | ≤93％ | ||||||
| Air pressure | 500hPa～1060hPa | ||||||
