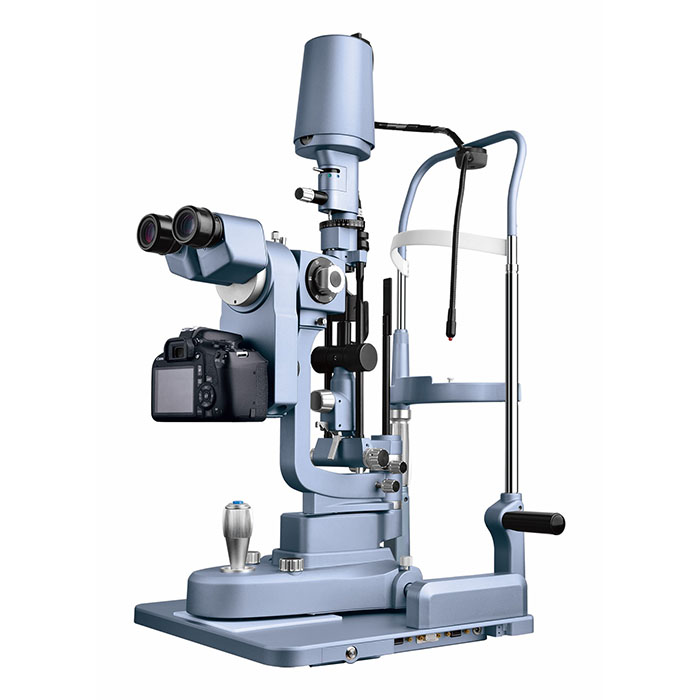

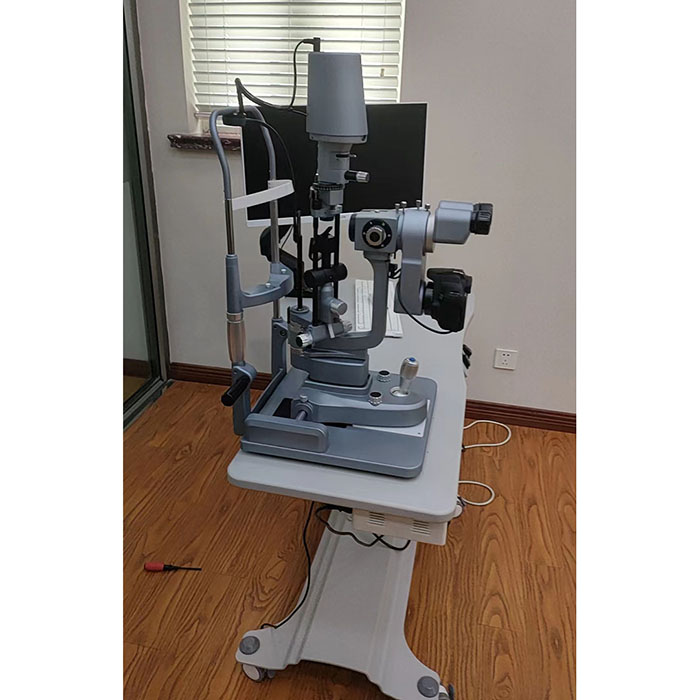

BL-99D Digital 5 Magnifiers Software Slit Lamp, Yellow Filter Built-in, Led Lamp
CE Certified
Complete Configuration:
1. Digital 24 Megapixels DSLR camera (Canon 1500D)
2. Automatic exposure
3. Automatic optimization
4. Automatic eye position recognition
5. Illumination background light
6. 1080p dynamic video
Technical Parameters
·High-performance Optical Microscope
Delivers all the essential functions of a slit lamp while featuring outstanding optical performance, enabling you to observe every structure of the eye in fine detail.
·LED Light Source
LED illumination provides bright and sharp lighting. Patients stay comfortable during the examination because the LED produces virtually no heat.
·Built-in Yellow Filter
The built-in yellow filter, combined with the cobalt-blue filter, increases the contrast of sodium fluorescein staining images. Operation is simple — just turn the yellow filter knob.
·Metal Furnish Appearance
The magnification select dial, chin-rest elevation adjustment knob, and joystick are all made from metal material, enhancing the metallic finish and long-term durability.
·Easy Installation
Integrated metal plate design — abandons the traditional power box and applies an adaptor for power, making it easy to install with a combined table and moveable.
| Specifications: | |
| Microscope | |
| Microscope Type | Galilean Stereoscope microscope |
| Magnification selection | 5 Steps by drum rotation |
| Eyepieces | 12.5x |
| Magnification Ratio(Field of View) | 6x(33mm), 10(22.5mm), 16(14mm), 25x(8.8mm), 40x(5.5mm) |
| PD adjustment | 50mm ~ 82mm |
| Diopter adjustment | +7D ~ -7D |
| Base | |
| Left and right move | 110mm |
| Forward and back move | 90mm |
| Up and down move | 30mm |
| Chin rest | |
| Up and down move | 80mm |
| Fixation Lamp | Red LED |
| Property of illumination | |
| Slit width | 0 ~ 14mm continuous (at 14mm,slit becomes circle) |
| Slit height | 1 ~ 14mm continuous |
| Slit angle | 0~ 180° adjustable |
| Slit inclination | 0°,5°,10°, 15°,20° |
| Light spot diameter | Ф14mm, Ф10mm, Ф5mm, Ф3mm, Ф2mm, Ф1mm , Ф0.2mm and 1 ~ 14mm continuous |
| Filter | Heat absorption ,Grey, Red-free ,Cobalt Blue, Built-in Yellow |
| Illumination Bulb | LED |
| Power | |
| Input voltage | 110V/220V AC |
| Frequency | 50/60HZ |
| Input Power | DC7.5V 6A |
| Weight and size | |
| G.W | 25kg |
| N.W | 20kg |
| Dimension | 700mm(L)× 540mm(W)× 550mm(H) |
