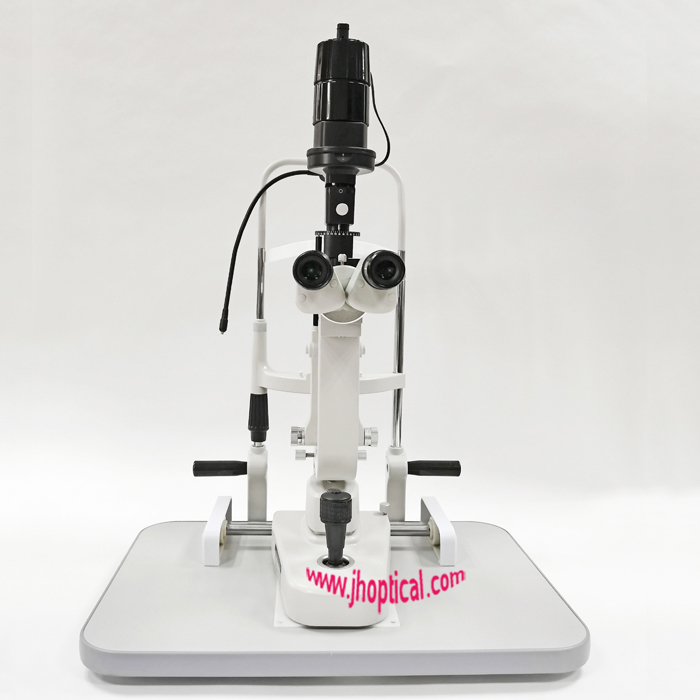

BL-88 5 Magnifiers Slit Lamp, halogen or LED lamp are both available
🔬 BL-88 5-Magnification Slit Lamp – Precision Eye Examination for Every Clinic
CE
Both LED and halogen illumination options are available at the same price.
✨ Why the BL-88 Stands Out
The BL-88 Slit Lamp is engineered for eye care professionals who demand clarity, versatility, and reliability. Whether you run a busy ophthalmology clinic, an optometry practice, or a teaching hospital, this instrument delivers the optical performance you need for accurate diagnosis and patient comfort.
🔍 Key Features & Benefits
Advanced Filter Wheel
* The filter wheel rotates a full 360°, adding 3 extra filters for expanded diagnostic functionality.
* Patent number: 2010101380635
Superior Optical System
* Converging Stereoscope design with drum rotation for smooth magnification changes.
* 5 magnification steps – at 40X, you can clearly observe blood flow in the scleral vessels.
* Multi-level coating on optical glass ensures bright, clear imaging with a wide, open view.
Comprehensive Observation
* Large light spot diameter with slit width up to 14 mm for full eye examination.
* High eyepoints and large eyepieces provide excellent stereo sense and easy operation.
Patient-Friendly Design
* Imported illumination bulb runs cooler, brighter, and with a more balanced light spot.
* Humanized chin rest armrest keeps patients comfortable during extended exams.
* All connector interfaces match international accessories for easy system upgrades.
📋 Technical Specifications
| Specifications: | ||||
| Property of slit lamp | Microscope Type | Galilean Stereoscope microscope | ||
| Magnification selection | 5 Steps by drum rotation | |||
| Eyepieces | 12.5x | |||
| Magnification Ratio (Field of View) | 6x(33mm), 10×(22.5mm), 16×(14mm), 25x(8.8mm), 40x(5.5mm) | |||
| PD adjustment | 52mm ~ 80mm | |||
| Diopter adjustment | +5D ~ -5D | |||
| Base | Left and right move | 110mm | ||
| Forward and back move | 90mm | |||
| Up and down move | 30mm | |||
| Chin rest | Up and down move | 80mm | ||
| Fixation Lamp | Red LED | |||
| Property of illumination | Slit width | 0 ~ 14mm continuous (at 14mm, slit becomes circle) | ||
| Slit height | 1 ~ 14mm continuous | |||
| Slit angle | 0~ 180° continuous | |||
| Slit inclination | 0°, 5°, 10°, 20° | |||
| Light spot diameter | Ф14mm, Ф10mm, Ф5mm, Ф3mm, Ф2mm, Ф1mm, Ф0.2mm and 1 ~ 14mm continuous | |||
| Filter | Heat absorption, Grey, Red-free, Cobalt Blue | |||
| Illumination Bulb | 12V 50W halogen lamp or LED | |||
| Power | Input voltage | 220V | ||
| Frequency | 50HZ | |||
| Power consumption | 68VA | |||
| Weight and size | G.W | 18kg | ||
| N.W | 16kg | |||
| Dimension | 550mm(L)× 430mm(W)× 780mm(H) | |||
