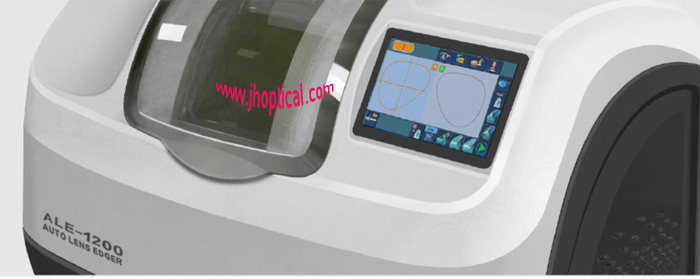

ALE-1200G 3D Patternless Auto Lens Edger with grooving function

CE

Abstract:
Patternless Auto Lens Edger 3D
Scanners split type configuration
1) Belvelling position is selectable.
2) Has grooving function.

Features:
ALE-1200G
1.Automatic initialization
2.Three - dimensional probe front & rear surface camber
3.wheel configuration：
1) Glass grinding wheel
2) Resin rough wheel
3) Bevel/flat edge grinding wheel
4) Bevel/flat edge polishing wheel
4.Automatic clip, three selections of clip pressure, adapt to different material lens processing
5.Connect with water pump using circulating water and connect with solenoid valve when running water
6.Grinding diameter
1)≤80 mm
2) Flat（No secured bevel）≥19.00mm
3) Bevel（No secured bevel）≥19.00mm
7.Automatic cleaning of lens fixing system and grinding room
8.Lens processing statistics
9.The design standard is for indoor use
10.Dimension specification
1)Length：705mm
2) Width：465mm
3) Height：442mm
11.Weight：65kg
12. Input Voltage：220V-230V/50Hz，110V-115V/60Hz
13. Machine power：1500W
14.Noise：72db
15.Operating Temperature：5℃~40℃
16. relative humidity：10% - 80%
17. Pump working voltage：220V-230V /50Hz，110V-115V /60 Hz
18. Pump rated power：≤150W
19. FUSE:
220V-230V /50HZ==15A
110V-115V /60Hz==25A

Scanner ST-1200
1)Dimension:360mm*250mm*230mm
2)Weight:5kg
3)Voltage:AC230V/115V 50/60HZ
4)Power:60W
5)ADD adjustment range:6mm
6)Screen tilt angle:0~130o
7)Max storage:500 sets
8)Touch screen:7 inch capacitive screen
9)Quantity of connecting with the main machine:2 units.
