TR-510-Ophthalmic-unittable-board-with-groove

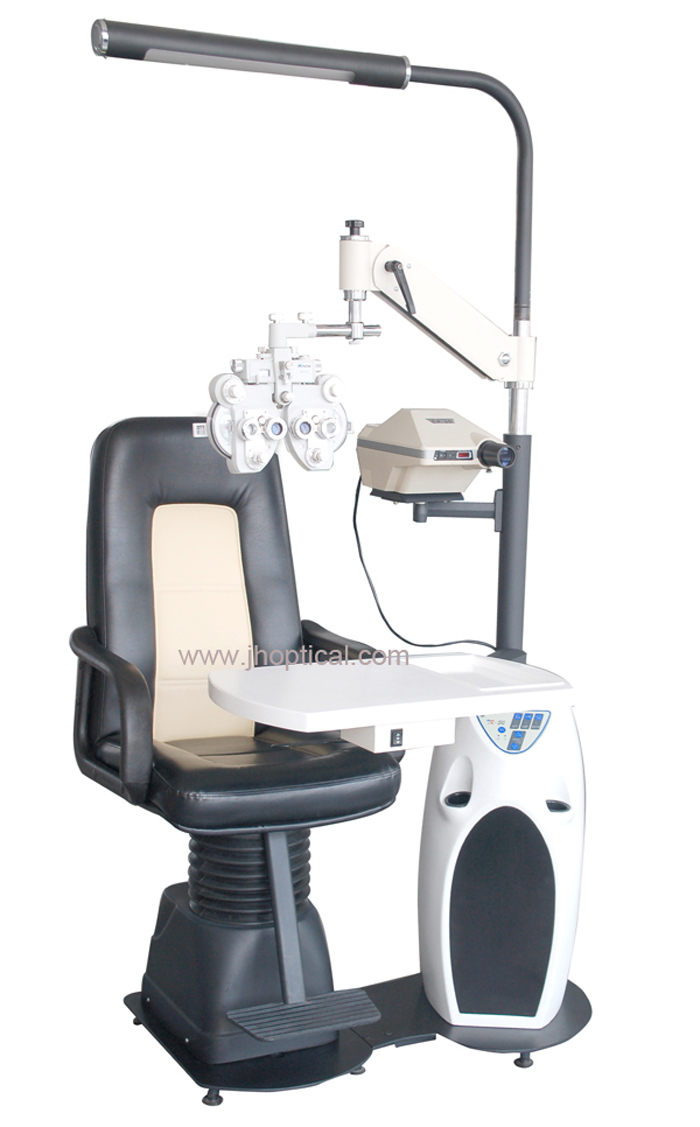

TR-510 Refraction Chair Unit,table board with groove

Price

$ Login

Item#

TR-510

已选清单

0种 0件

Send Inquiry

Add To Cart

Description

Table board with groove
1. Small table
2. Whole bottom
3. Black sharp head seat, seat can not be revolving and reclining
4. Pedal is not foldable.
5. Arc chassis

Features:
■ Adopts Europe style in appearance designing, small and exquisite, can be used for small room.
■ Hand-operated phoropter arm can swing up and down, left and right to its best position, which shows the human-oriented design of it.
■ Easy operation with a well positioned control panel.
■ The comfortable and beautiful chair can smoothly lift up and down with low noise and able to bear big force.
Mechanical Parameters
Up/Down angle of swing arm: ±30°
Table size: 670mm×400mm
Table rotational angle: 90°
Lifting height for chair: 150~200mm
Loading for chair: 70~150kgs
Electrical Parameters
Input voltage: 110V/220V AC 50Hz~60Hz
Engine power: 55W 24V DC
Light luminaire: 40W 110V/220V AV
Fuse: 5A 250V AC
Power without load: 1W
Pressure test: 2KV
Main wire: 10A 250V
Working mode: S1
Working temperature: －30º~＋50º
Relative humidity: less than 90%
Force of pressing key: 1~5N
Cooling mode: Nature cooling
Installation Dimension
Figure size: 990mm×585mm×2110m
Weight: 120kgs
