TR-500 Refraction Chair Unit,table board with groove

Price

$ Login

Item#

TR-500

已选清单

0种 0件

Send Inquiry

Add To Cart

Description

Table board with groove
Small beauty and economical application

【Characteristic】
·Small and exquisite, can be used for small room.
·Hand-operated phoropter arm can swing up and down, left and right to its best position, which shows the human-oriented design of it.

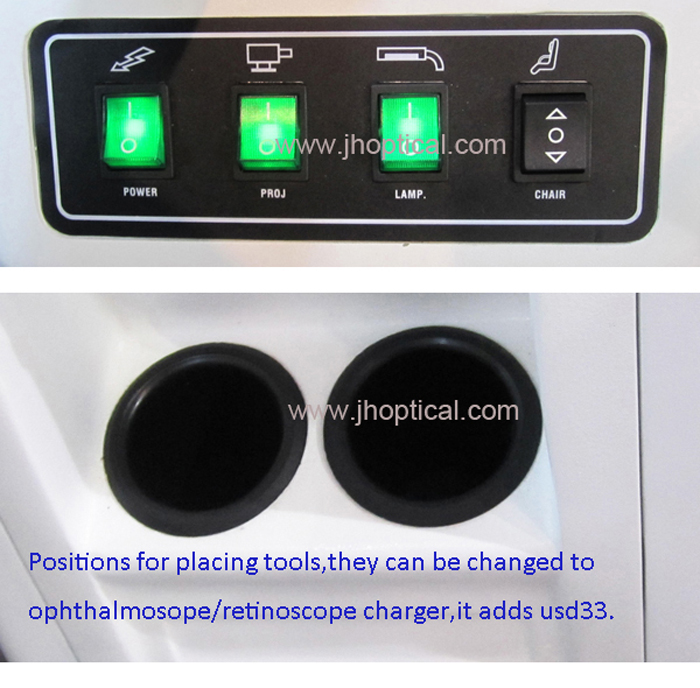

·Easy operation with a well positioned control panel.
·The comfortable and beautiful chair with electric elevator, stable and low noise.
Mechanical Parameters
Up/Down angle of swing arm: ±30°
Table size:670mm×400mm
Table rotational angle: 90°
Lifting height for chair: 150~200mm
Loading for chair: 70~150kgs

Electrical Parameters
Input voltage: 110V/220V AC 50Hz~60Hz
Engine power: 55W 24V DC
Light luminaire: 40W 110V/220V AV
Fuse: 5A 250V AC
Power without load: 1W
Pressure test: 2KV
Main wire: 10A 250V
Working mode: S1
Working temperature: －30º~＋50º
Relative humidity: less than 90%
Force of pressing key: 1~5N
Cooling mode: Nature cooling

Installation Dimension
Figure size: 1100mm×1000mm×2110mm
Weight: 120kgs
