S-600C Optometry combination table
$
Login

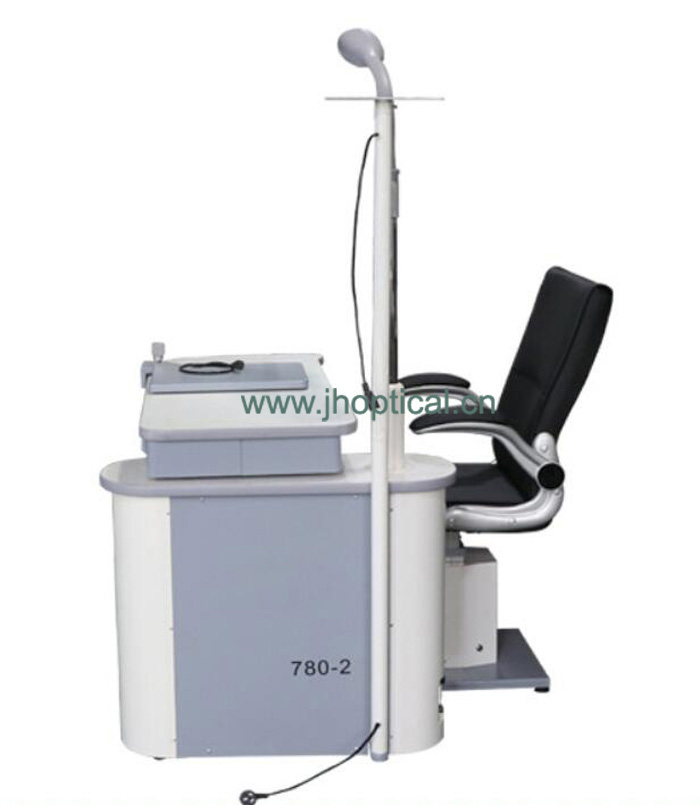

S-780-2 Refraction Chair Unit
Price
$
Login
Item#
S-780-2
已选清单
0种
0件
Specification
1) With projector pole
2) Without projector pole
Description
Features of S-780-2:
1）Table top can be opened at 90 degrees;
2）The swing arm can be up and down electricly, and left and right at 90 degrees electricly.
| Specifications: | |||||||
| The whole size | 1500*1200mm | ||||||
| Big table size | 880*500mm | ||||||
| Small table size | 400*285mm | ||||||
| Drawer size | 545*380*50mm | ||||||
| Small table movable distance | 420mm | ||||||
| Table movable distance | 90mm | ||||||
| Tabletop rotation range | 90° | ||||||
| Arm up and down range | 300mm | ||||||
| Rotating degree of swing arm | 90° | ||||||
| Distance from floor to small tabletop | 850mm | ||||||
| Distance from floor to big tabletop | 820mm | ||||||
| Distance from floor to phoropter hanger | 1420mm~1720mm | ||||||
| Distance from floor to chair | 1250mm~1410mm | ||||||
| Lifting range of chair | 160mm | ||||||
| Size of chair back | 600X500X100mm | ||||||
| Voltage | AC110V/220(60/50Hz) | ||||||
| Net weight | About 160kg | ||||||
