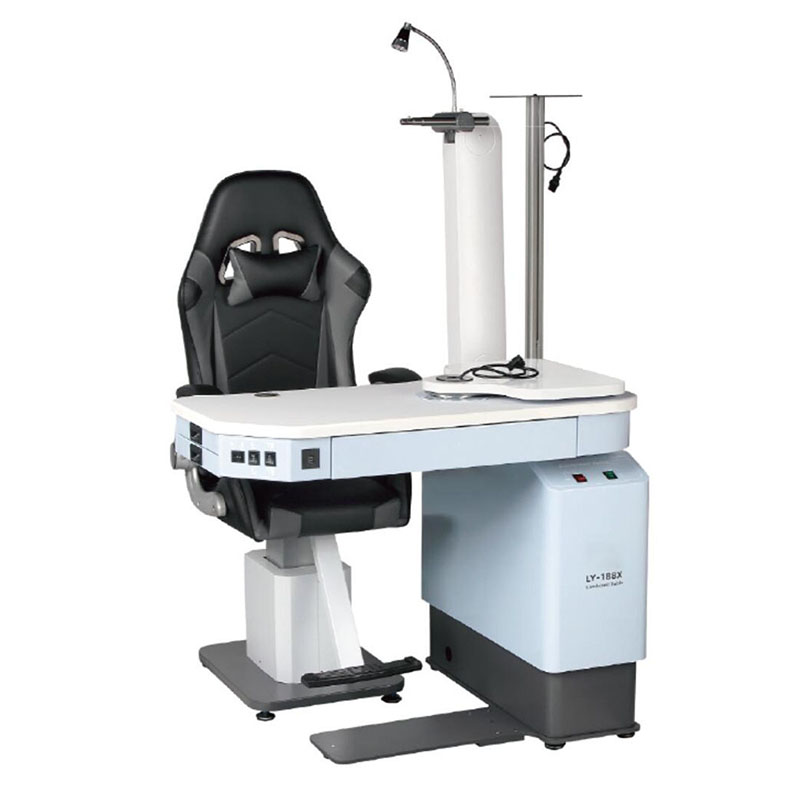

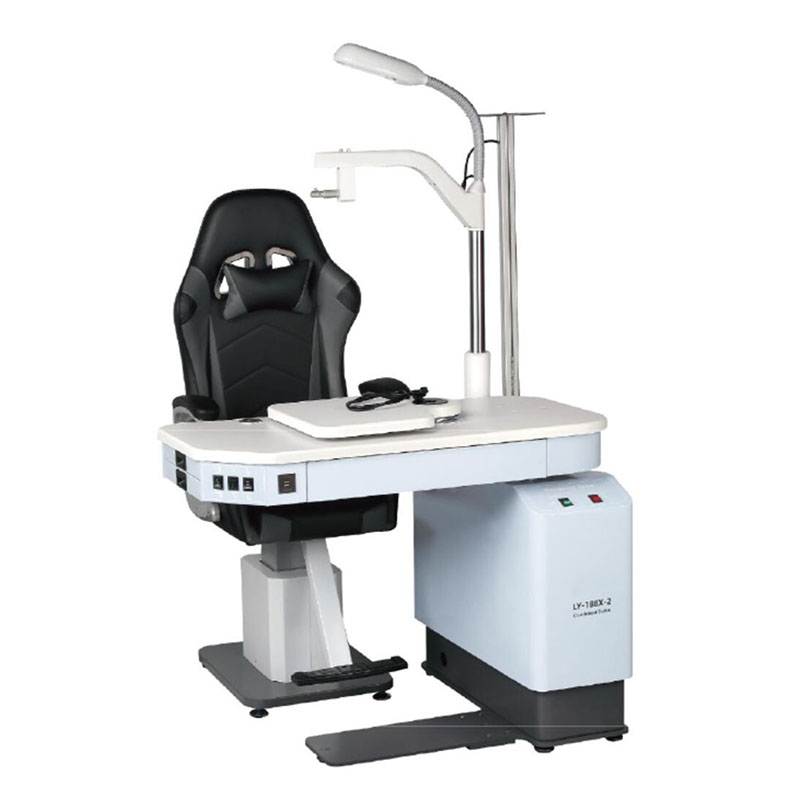

LY-188X, LY-188X-2 Combined tables

Item# LY-188X-LY-188X-2

Get Quote

Add to Quote

Description

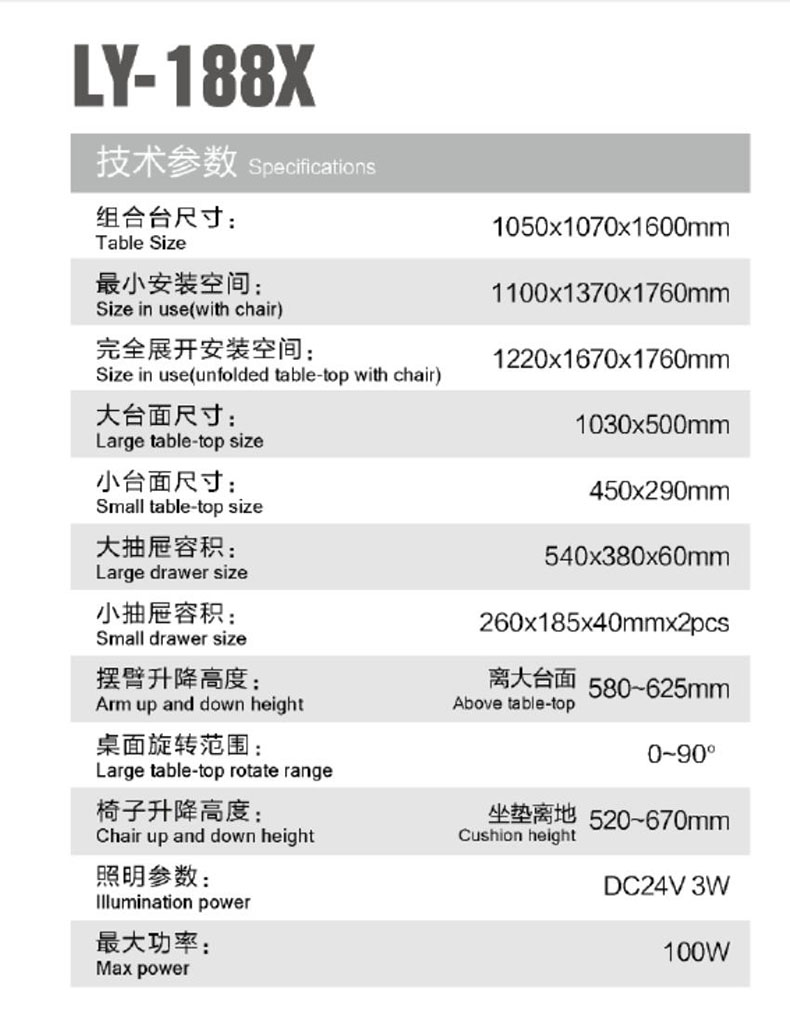

📋 Technical Specifications

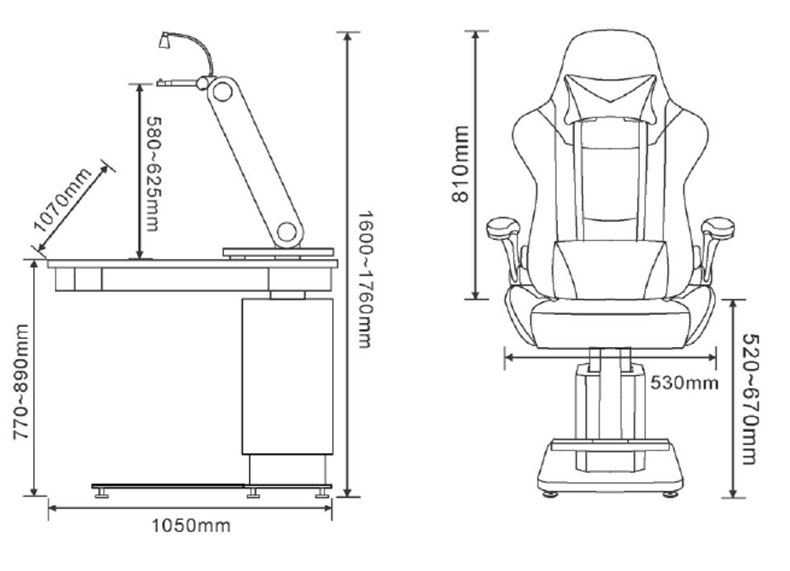

Overall Dimensions	1050x1070x1600mm
Required Space (with table and chair extended)	1100x1370x1760mm
Required Space (unfolded table-top with chair)	1220x1670x1760mm
Large table-top size	1030x500mm

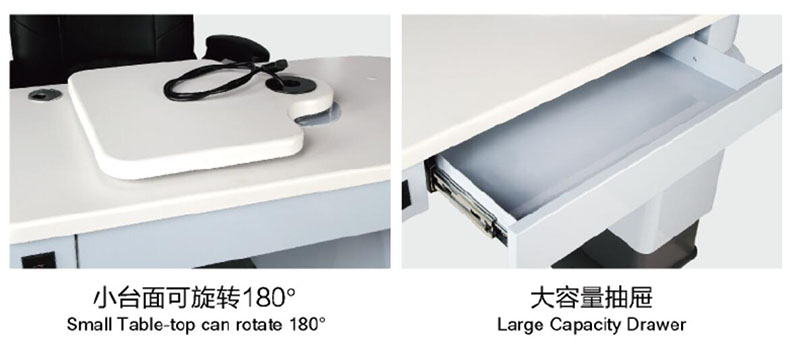

Small table-top size	450x290mm

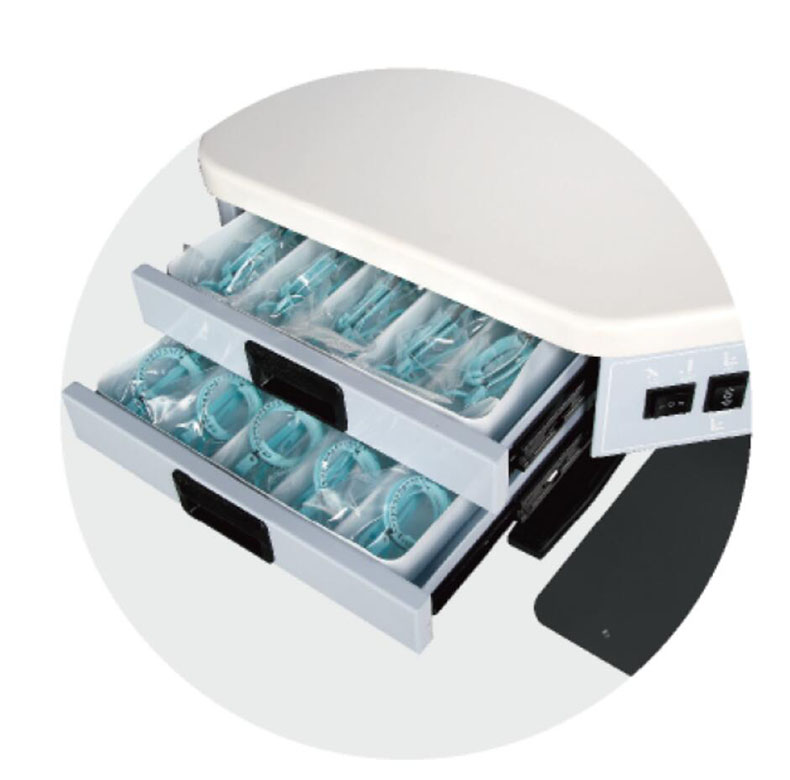

Large Drawer Dimensions	540x380x60mm

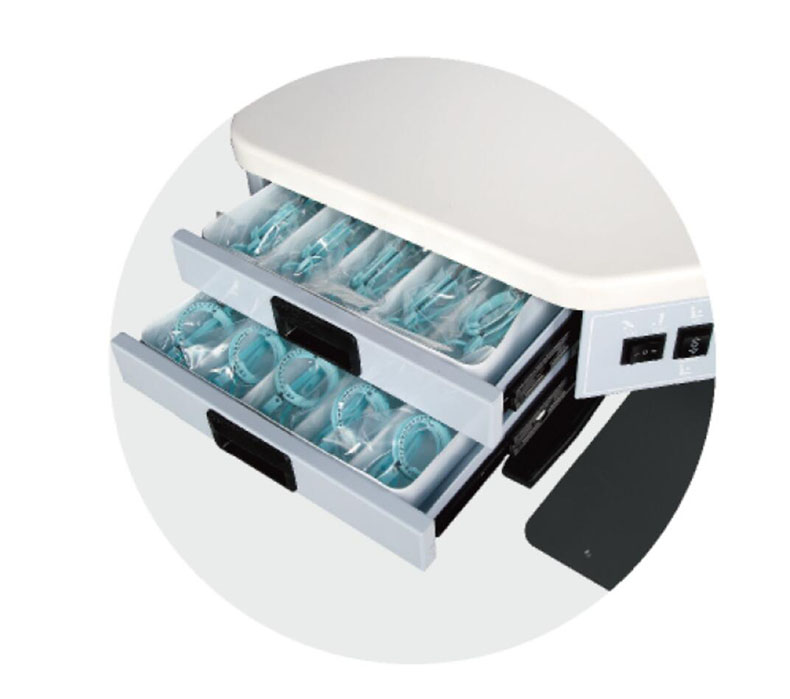

Small Drawer Dimensions	260x185x40mmx2pcs
Arm up and down height (Above table-top)	580~625mm
Tabletop Rotation Range	0~90°
Chair Seat Height Adjustment Range	520~670mm
Illumination power	DC24V 3W
Max power	100W

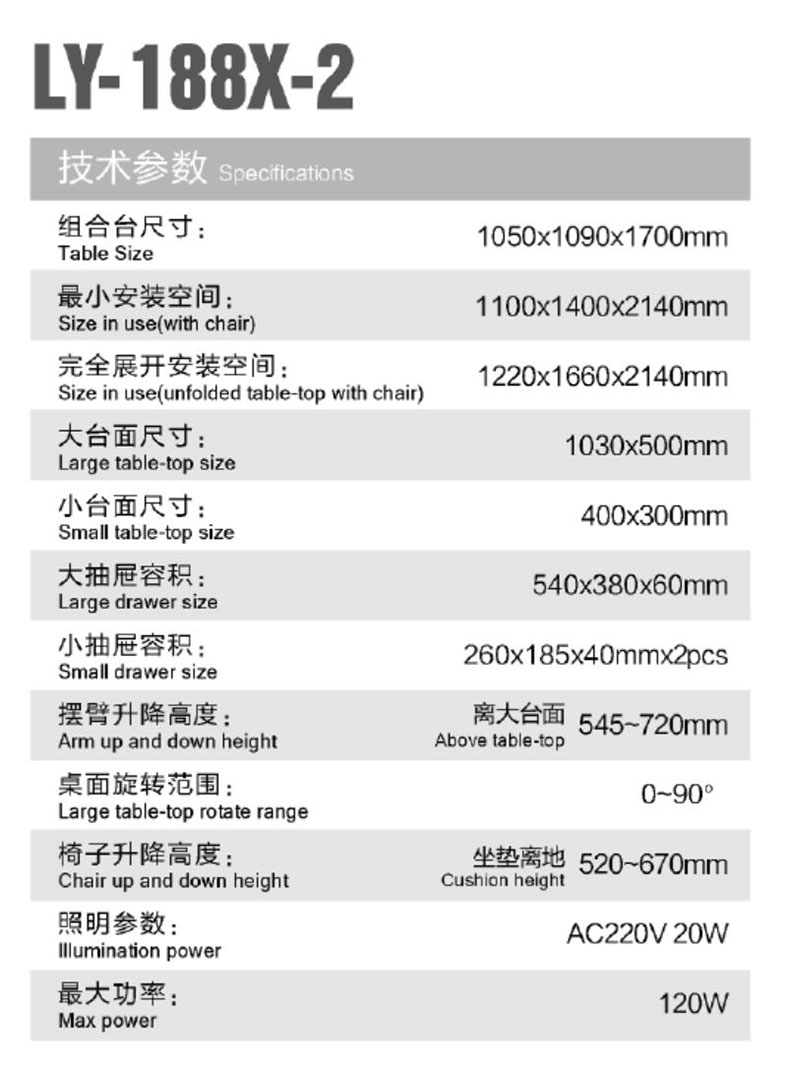

LY-188X-2

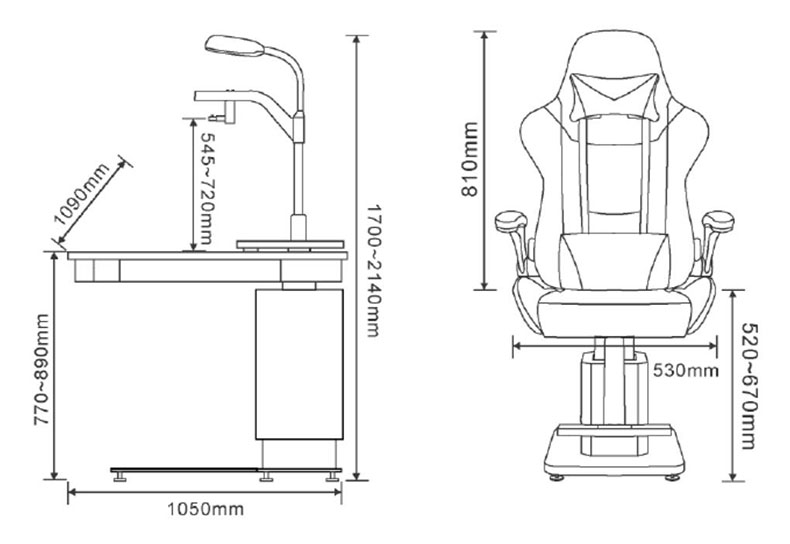

Overall Dimensions	1050x1090x1700mm
Minimum Installation Space	1100x1400x2140mm
Installation Space (Fully Extended)	1220x1660x2140mm
Main Tabletop Dimensions	1030x500mm
Side Tabletop Dimensions	400x300mm
Large Drawer Dimensions	540x380x60mm
Small Drawer Dimensions	260x185x40mm x2pcs

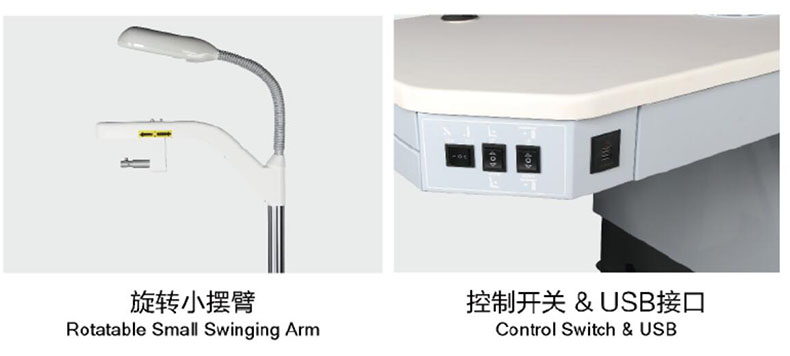

Swing Arm Vertical Adjustment	545~720mm (Above tabletop)

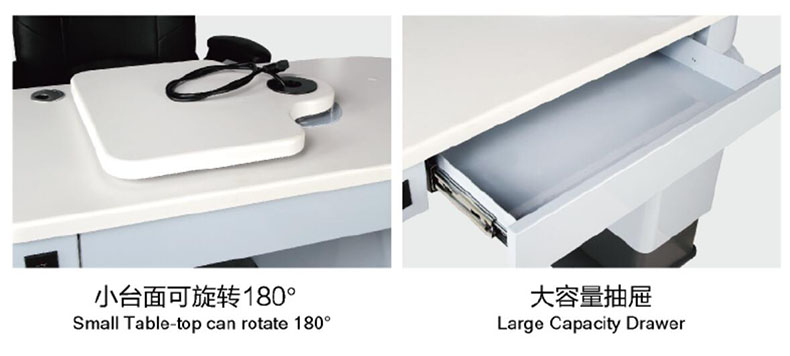

Tabletop Rotation Range	0~90°
Chair Height Adjustment	520~670mm (Cushion height)
Illumination Specifications	AC220V 20W
Maximum Power Consumption	120W
