    HomeProducts Medical Ophthalmic Instruments Ophthalmic Ultrasound ODU5 Ophthalmic Ultrasound A/B Scanner
    ODU5-ophthalmic-ultrasound-AB-scanner
    1. ODU5-ophthalmic-ultrasound-AB-scanner.288.2.JPG
    2. ODU5-ophthalmic-ultrasound-AB-scanner
    3. ODU5-ophthalmic-ultrasound-AB-scanner
    4. ODU5-ophthalmic-ultrasound-AB-scanner

    ODU5 Ophthalmic Ultrasound A/B Scanner

    Price
    $ Login
    Item#
    ODU5
    已选清单
    0种 0件
    Specification
    1) Main machine
    2) Large lithium battery
    3) Immersion shell
    4) sony printer VGA port
    5) Trolley
    Quantity
    Amt($):
    Selected
    Send Inquiry
    Add To Cart
     Like
    Description
    CE,ISO13485




    About FDA Certificate:
    It has no FDA. But it can be sold to MIAMI,USA.


    Name:

    ODU5-ophthalmic A/B mode ultrasound scanner
    Feature:
    ● Adopt ARM9 Embedded Control Systems, FPGA signal processing system and elaborate selected ultrasonic hardware system。
    ● 10.4 inch high resolution LCD screen,
    ● Menu operation Language: Chinese/English.
    ● Double probe sockets:
    ● A mode probe: 10MHz, imported probe with fixation light.
    ● B mode probe: 10MHz, imported transducer.
    ● Display mode: B, B/B, 4B, B/A, A
    ● Gains range: 0--120dB.
    ● Dynamic range: 30-100dB, visual and adjustable.
    ● Gray: 256.
    ● Intelligent TGC adjustment: 8 segments.
    ● Build-in D disk: 4GB, save mass data, images, reports, etc.
    ● Report function: print screen, IOL report, case report with picture, etc.


    A scan
    Resolution:
    0.01mm
    Gain adjustable:
    0-120dB
    Measurement range:
    15-40mm (1640m/s)
    Accuracy:
    ±0.1mm
    Measuring parameter:
    ACD, LENS, Vitreous body Length, axial length.
    Eye mode:
    normal /aphakia /dense cataract /PMMA, Acrylic & Silicon for Pseudo Phakic eyes
    Measuring Mode:
    Contact and Immersion, automatic and manual.
    Calculation:
    std. deviation, average, automatical measuring 10 groups and average, accompany waveform, results correctable.
    IOL Formula:
    SRK-II, SRK-T, BINKHORST,HOLLADAY, HOFFER-Q, HAIGIS


    B scan
    Scan mode:
    High accuracy stepping motor drive sector scan.
    Scan Angle:
    53°.
    Display Depth:
    0~56mm
    Gray:
    256.
    Frame frequency:
    10frames /s.
    Depth seletion:
    8
    Frame correlation:
    4
    Edge enhancement:
    4
    Compression Curve:
    4
    Post-processing:
    8100 frames permanent image storage.
    Cine loop:
    256 frames, can measure the playback image.
    Disk management.

    General Measurement:
    multi-electronic-rule to measure distance, circumference, area (trace method, ellipse method), volume (ellipse method), angle ,histogram, profile, stenosis and curvature etc.


    Specification
    Power supply:
    100-240V~ 1.2-0.6A  Frequency:50-60Hz
    Adapter output:
     DC12.8V 3.0A

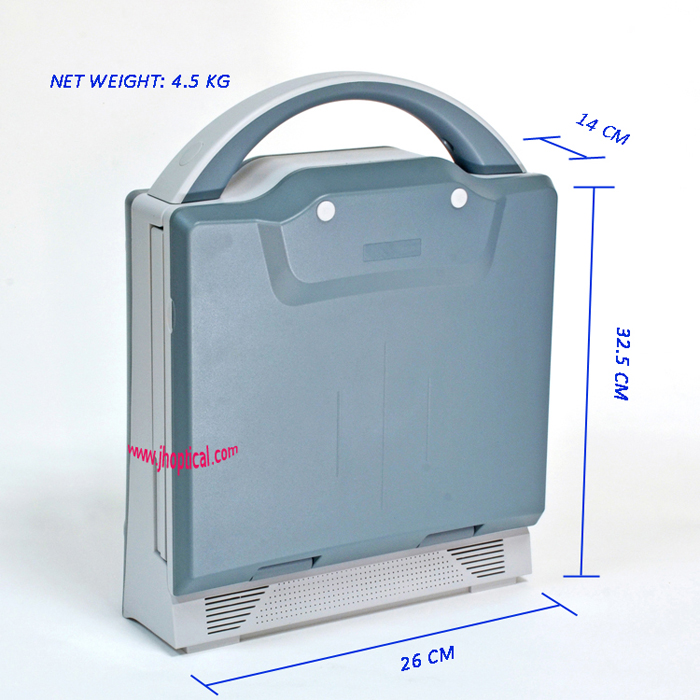

    Net wegith:
    4.5kg
    Gross weight:
    8.5kg
    Packing size:
    360* 340* 460mm
    Gross weight of trolley2:
    12kg
    Packing size of trolley2:
    63* 78* 21.5cm
    Gross weight of trolley1:
    21kg
    Packing size of trolley1:
    76* 62* 37cm


    Optional Components
    * Large Lithium Battery
    * Immersion Sheel
    * Sony Video Recoder











































    Packaging Detail
    Unit: ctns, cm, kg, m3, pcs
    TitleLWHCBMNWGW
    Scanner4040500.08510
    Trolley7665550.2722633
    Total:CY:1 CTN:2 CBM:0.352 NW:31 GW:43
