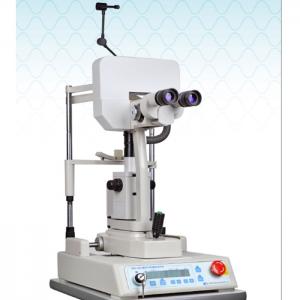

MD-920 Nd:YAG Laser Photodisruptor for Ophthalmology
Price
$
Login
Item#
MD-920
Abstract
Easy-Operated, stable and safe.
已选清单
0种
0件
Description
Feature:
◆ Easy setup for installation and maintenance purpose
◆ Fixed on mobile wheel stand for transportation
◆ Height adjustable stand
◆ Shorter movement for Slit Lamp releases back fatigue
◆ Easy & intuitive operating console
◆ Emergency Stop Button
◆ Treatment Room Connected Button
◆ Adjusted focal plane for laser beam and aiming beam
◆ Adjust diopter for Slit Lamp binocular microscope only to focus the laser & aiming beam on the target
◆ Highly concentrated laser beam and quick dispersion
| Specifications | |
| Laser Type: | Nd:YAG, Q-Switched |
| Wavelength: | 1064 nm |
| Mode: | Q-Switch |
| Pulse Output: | 1,2,3 pulses per burst |
| Pulse duration: | 4.5 ns |
| Pulse Repetition Rate: | 2.5Hz |
| Output Energy : | |
| A) 1 pulse maximum output: | 11mJ |
| B). 2 pulse maximum output: | 9mJ |
| C). 3 pulse maximum output: | 28mJ |
| D). Output Energy Regulation: | 100%~6% adjustable by 7 steps |
| Cone Angle: | 18° |
| Spot Size: | 30 µm |
| Aiming Beam Wavelength: | 633nm |
| Aiming Output Power PC: | < 0.4 mW |
| Cooling system: | Air cooled |
| Machine packing size: | 76.5*65*50mm |
| Gross Weight of machine: | 25kg |
| Packing size of table: | 69*58*42cm |
| Gross weight of table: | 23kg |
