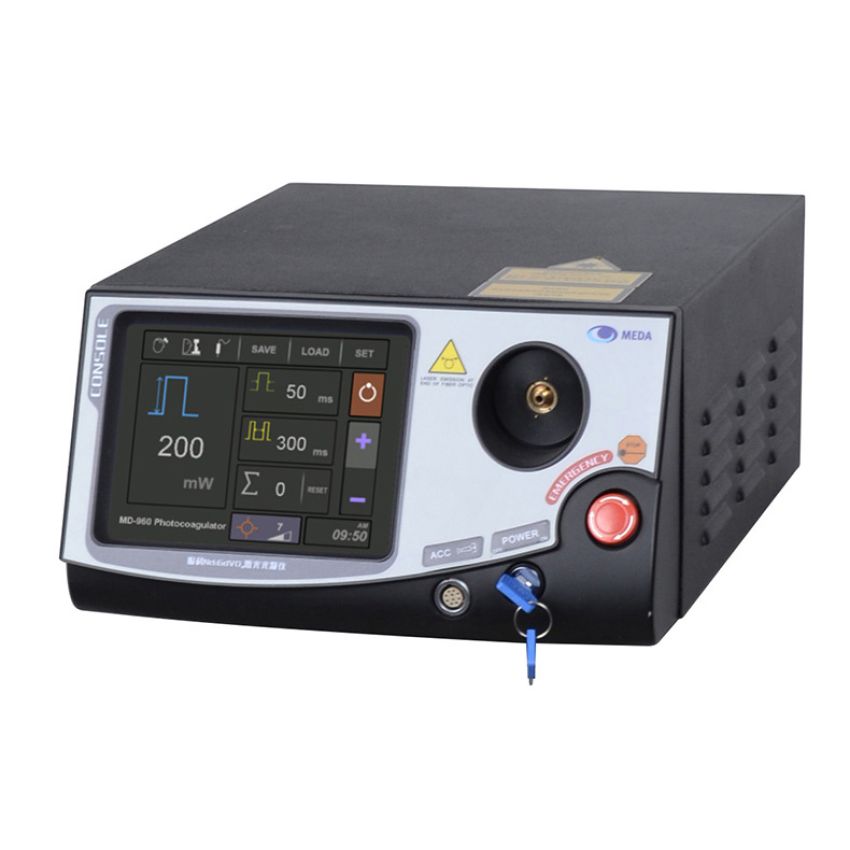

MD-960 Laser Photocoagulator

MD-960 Laser Photocoagulator

Advanced Solid-State Laser Technology for Precision Retinal Treatment

Key Features

Compact & Portable Design

• Compact and portable, delivering advanced solid-state laser technology in a space-saving unit
• Touch screen operation for intuitive, effortless control

Precise Treatment Control

• Continuously zoomed and precise laser spot size for accurate targeting
• Homogeneous photocoagulation spot on the retina for consistent, reliable results
• Stable output with no power degeneration, thanks to the closed-loop power control system

Safety First

• Minimized power density on the cornea to reduce risk during procedures
• Maximum protection while maintaining a clear field of view

Versatile & Adaptable

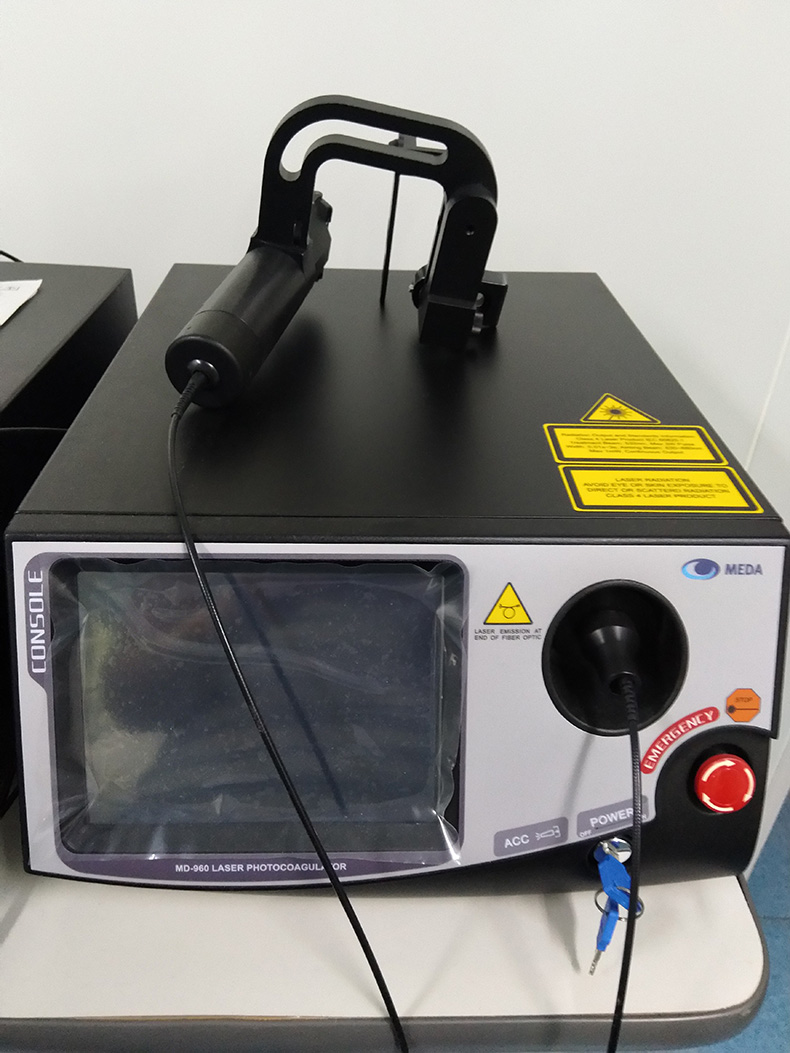

• Detachable delivery system compatible with a range of slit lamp microscopes

Specifications

Treatment Beam

• Type: Diode-pumped frequency-doubled solid state laser
• Wavelength: 532nm Green True CW
• Power Output: 50–2200mW, adjustable
• Pulse Duration: 0.01s–3s, adjustable
• Pulse Interval: 0.05s–1s, adjustable

Aiming Beam

• Type: Laser diode
• Wavelength: 630–680nm
• Power Output: <0.1mW, adjustable

System Specifications

• Cooling: Air Cooled Thermoelectric Cooler System

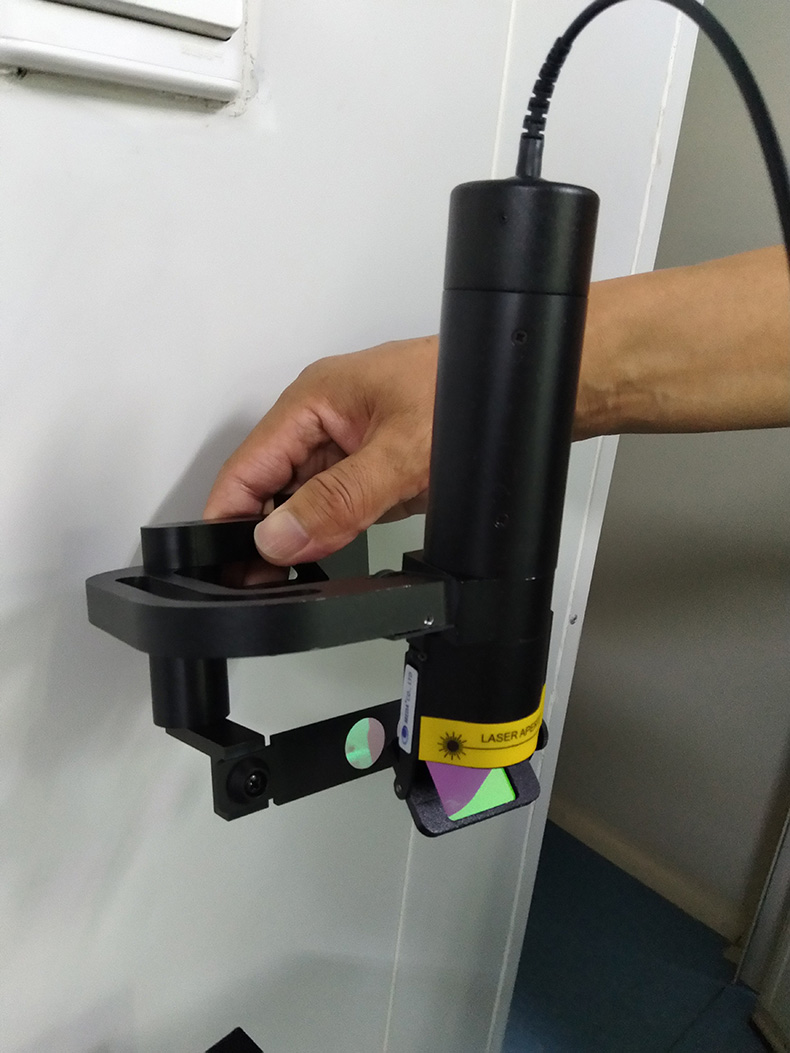

• Laser Delivery Unit: Slitlamp adapter; Endo Probe

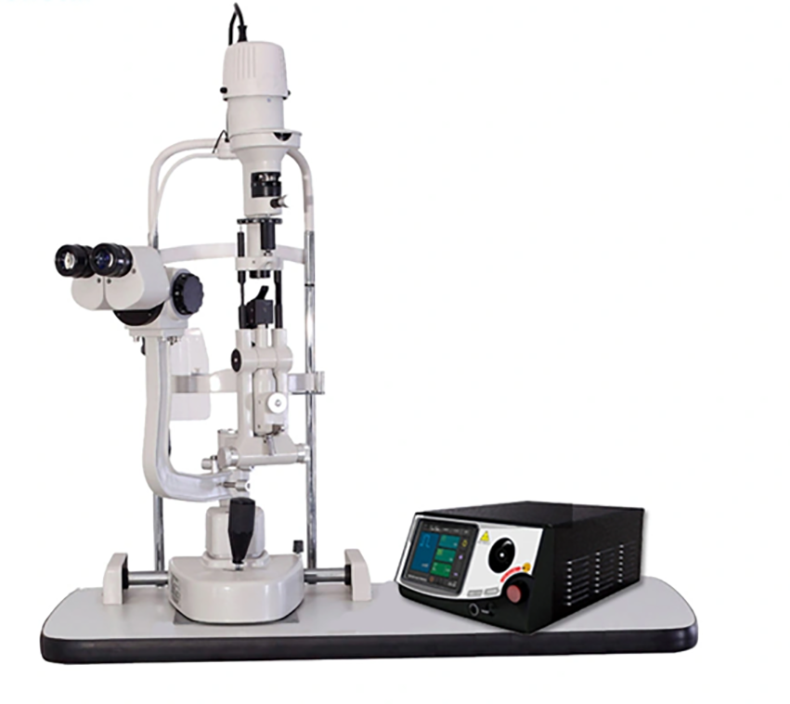

• Slitlamp Delivery: Zeiss and Haag Streit style slitlamp; Spot size continuously adjustable from 50 to 500 microns

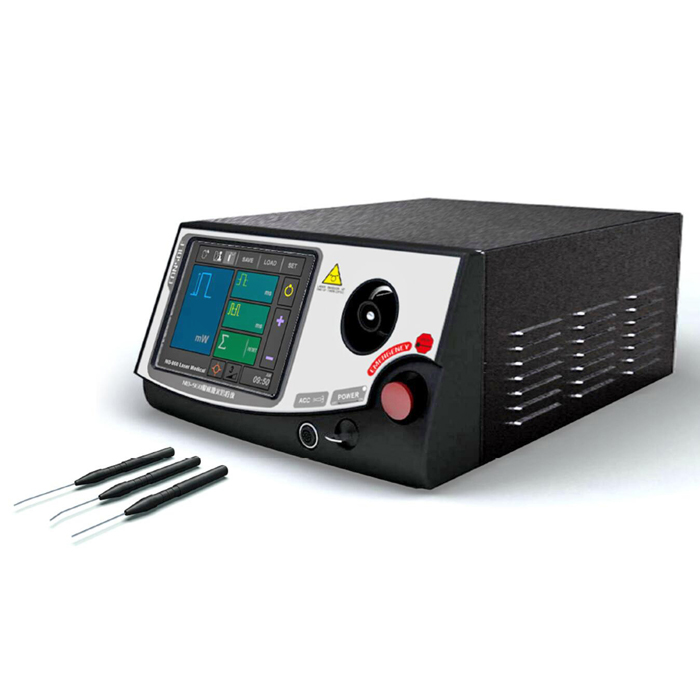

• Endo Probe: Curved and straight (20, 23 and 25G)
• Power: 100–240VAC
• Size: 30cm x 28cm x 14cm
