Description
CE
| Features: | |||||||||
| Uniform,homogeneous lighting in surface and deep cavity procedures thanks to L3+3C-LED´s innovative shadow control.Our ergonomic, sterile operating concept allows for the simple and flexible control of all functions by the surgical team.Almost unlimited LED life expectancy delivers tremendous product reliability and investment protection. Environmentally proactive: low power consumptionn and durable LEDs minimize the impact on our precious resources. | |||||||||
| Specification: | |||||||||
| Product Name | LED shadowless operating lamp | ||||||||
| Model | HF-L3 LED | ||||||||
| Applied Safety Standard | Comply with YY0627-2008 "Medical electrical equipment - Part 2: Special requirements for safety of surgical shadowless lamps and diagnostic lamps" | ||||||||
| Size(mm) | φ615*175H | ||||||||
| Material | aluminium alloy+PC | ||||||||
| Weight | around 11kg | ||||||||
| Color | White + dark gray | ||||||||
| Lamp IP | IP20 | ||||||||
| Packing size(mm) | L900*W840*H260 | ||||||||
| horizontal adjustment | -75°～75° | ||||||||
| Adjust to the T Angle vertically | N/A | ||||||||
| Instalation | with arm | ||||||||
| LED brand | OSRAM | ||||||||
| Bulb qty. | 75PCS | ||||||||
| CRI | ≥95 | ||||||||
| Illuminance depth | 1 meter distance（Spot size:120mm）CT=Color temperature | ||||||||
| 1st-stage CT（3500K） | 140000lx | ||||||||
| 2nd-stage CT（4000K） | 140000lx | ||||||||
| 3rd-stage CT（4500K） | 140000lx | ||||||||
| 4th-stage CT（5000K） | 133100lx | ||||||||

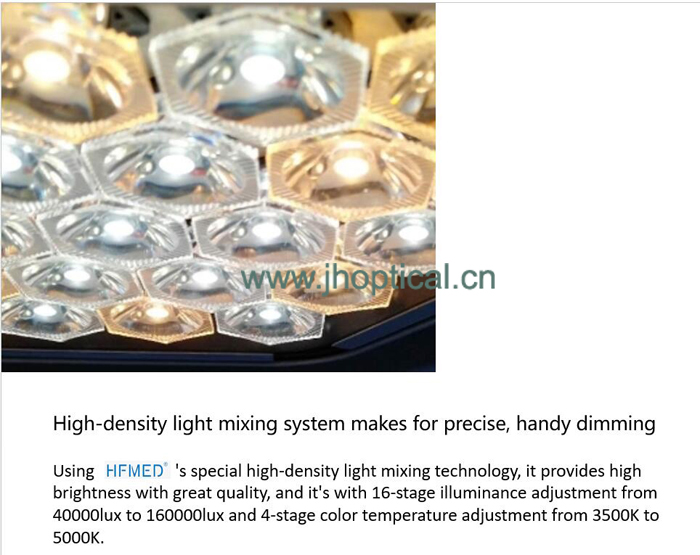

| Notice：There are 4-stage color temperature and each color temperature is with 16-stage illuminance adjustment, and the gear position is smooth and comfortable. This lamp is with R9 red light mode. | |||||||||
| CRI(Ra)： | ≥95，Peak 96；R9：92；R13：95 | ||||||||
| Light field size by electric control： | 120-250mm | ||||||||
| Power(W) | 35-75W | ||||||||
| Drive current(mA) | 1.87A-4.3A | ||||||||
| Input voltage(V) | 24VDC±5% | ||||||||
| Output voltage(V) | 27-30V/DC | ||||||||
| Power Efficiency | ≥90% | ||||||||
| DriverIP | IP20 | ||||||||
| Electrical protection class | Type III | ||||||||
| Dimming Type | Analog dimming | ||||||||
| Control | user-defined protocol | ||||||||
| Applicable temperature/humidity | -25～40℃/≤85%RH | ||||||||
| Storage temperature/humidity | -30～65℃/≤85%RH | ||||||||
| Electrical position | integration | ||||||||
| Illuminance depth | 1000mm | ||||||||
| Packing details: |
Total
3 cartons,total gross weight:91kg,total net weight:74kg,total
volume:0.8341cbm 1 piece in a carton:123*73*43 cm GW:63kg NW:52kg LED31 piece in a carton :25*89*89cm GW:14kg NW:11kg LED31 piece in a carton:25*89*89cm GW:14kg NW:11kg |
||||||||
