CS-560A Refraction Chair Unit
Price
$
Login
Item#
CS-560A
已选清单
0种
0件
Specification
1) With projector pole
2) Without projector pole
Description

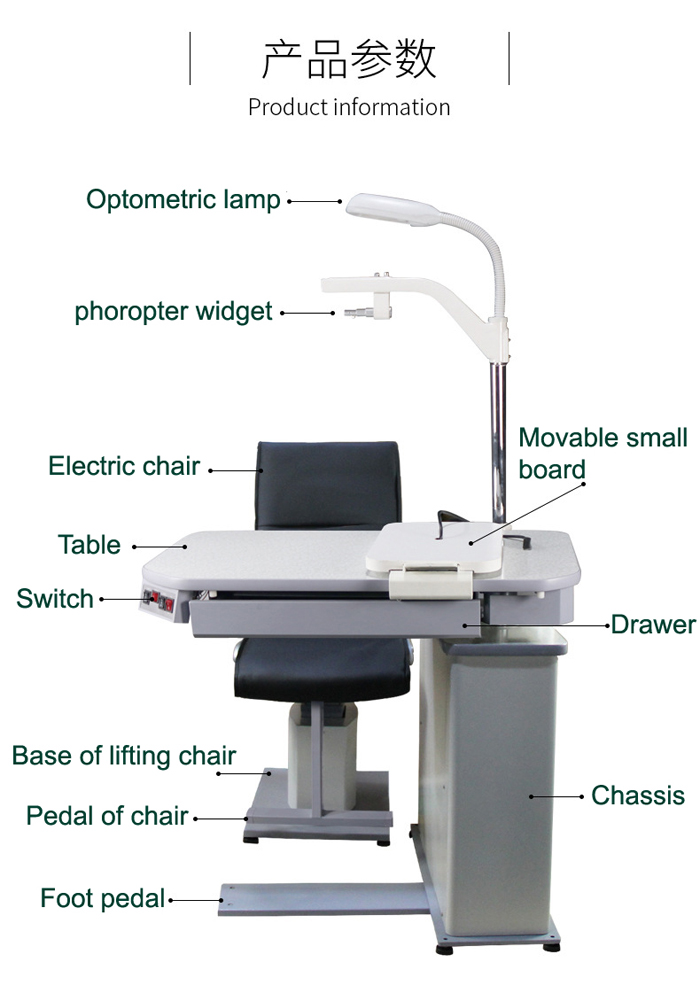

Features of CS-560A:
1）Table top can be opened at 90 degrees;
2）The swing arm can be up and down electricly.And Automatic rotation 90 degrees.
| Specifications: | |||||||
| The whole size | 960*1000*1600mm | ||||||
| Big table size | 980*490mm | ||||||
| Small board size | 400*285mm | ||||||
| Drawer size | 560*360*60mm | ||||||
| Sliding range of small board | 400mm | ||||||
| Swing arm lifting range | 140mm | ||||||
| Swing arm rotating angle | 90° | ||||||
| Table rotationg angle | 90° | ||||||
| Distance between floor to small board | 850mm | ||||||
| Distance between floor to big table | 820mm | ||||||
| Distance between floor to phoropter hanging place | 1420~1720mm | ||||||
| Distance between floor to chair | 1250~1410mm | ||||||
| Chair lifting range | 160mm | ||||||
| Size of chair back | 600*500*100mm | ||||||
| Voltage | AC110V/220(60/50Hz) | ||||||
| Net weight | About 160kg | ||||||
