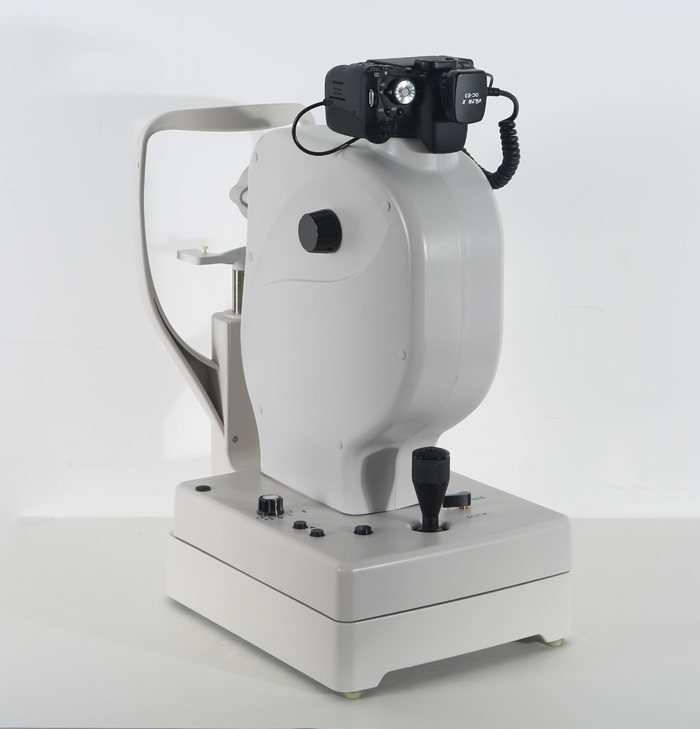

Description
| sk-660A | sk-650B | ||||||
| optical lens | aspherics system | ||||||
| Test mode | non-mydriatic fundus | non-mydriatic and ffa | |||||
| Min.puil size | 3.3mm | ||||||
| Fundus obervation | switching optical anterior -posterior compensation lens | moved platform | |||||
| Focus | split -line aliging focusing | ||||||
| Focus mode |
atuo/manual |
manual | |||||
| Capture |
atuo/manual |
manual | |||||
| Digital camera | canon eos technology | ||||||
| Color image resolution | 5184*3456 | ||||||
| Monochorme image resolution | / | 1360*1024 | |||||
| Compensation range | -25D~+30D | ||||||
| Fundus obervation para-position indication | Dots overlap | ||||||
| Flaxtion targe | 9 internal flaxtion target | externaleye flaxtion lamp&9 internal flaxtion target | |||||
| Maximum angle of view | 45° | ||||||
| Optical head tilting | / | horizontal+ -30 vertical+ -12.5 | |||||
| Working distance | 40mm+ -2mm | ||||||
| Software | support dicom 3.0 ,support hospital HIS/PACS system. image processing, easily operate, strong analysis,support fundus mosaic, image post processing,measurement, patient profile management | ||||||
