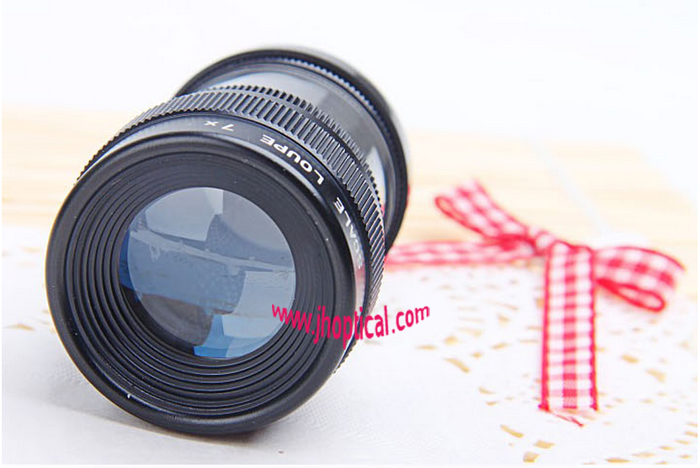

8013/03 7X Glass Reticle Scale Loupe
CE
Specification:
1) 7X Glass Reticle Scale Loupe
2) Specification:7x25
3) Magnification:7x
4) Diopter:24D
5) 4 kinds of glass reticle
6) Height:53mm
7) Outdiamter:35mm
8) The biggest diameter:39mm
9) Lens diameter:30mm
10) Net Weight:68g/pc
11) Gross weight:91g/pc
11) Optical glass lens with coating.
Features of 8013,8014:
Scale loupe also named staff magnifier.It's designed to be used in many using.Such as printing,maching,inspection and measurment etc.
Optical glass lens with coating.So it can offer high bright and high clear images.
This magnifier has good eye spacing.The peopel who wearing glasses with astigmatism also can use this magnifier.
Light weight,easy to be carried.
It has 2 kinds of magnifiers,8013(7x) and 8014(10x).They both have 4 kinds of glass reticle.Please see as below.
Differences between 8013 & 8014 | ||||||||
Model# | Magnification | Diopter | Aperture | Lens combination | Height | Diameter of scale | Eye overshoot | Remark |
8013 | 7x | 24D | 25MM | 4 groups 4pcs | 57mm | 33mm | 12mm | Lenses with coating |
8014 | 10x | 36D | 19MM | 2 groups 3pcs | 35mm | 33mm | 12mm |
