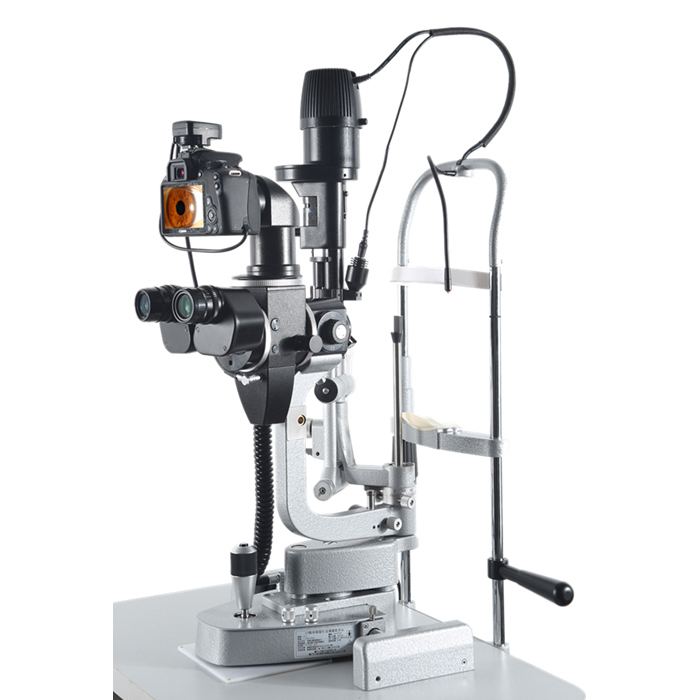

LS-7DS Digital standard slit Lamp
Description
CE,FDA,ISO
| Comparison of LS series Slit Lamps | ||||||||||
| Model# | Style |
Total Magnifi cation |
Magnif Changer |
Eyepiece Magnif |
Filter |
Slit Inclination |
Slit Width |
Slit Height |
Slit Angle |
Light spot |
| LS-1A |
Converging Stereoscope |
10X | 10X |
Neutral Density, Red-free, Cobalt Blue |
-- |
0.1mm, 0.2mm, 0.8mm, Ф1mm, Ф5mm, Ф12mm Circle |
8mm, 12mm, |
±60 | -- | |
| LS-1B |
Converging Stereoscope |
10X,16X | 1 steps | 10X,16X |
Neutral Density, Red-free, Cobalt Blue |
-- |
0.1mm, 0.2mm, 0.8mm, Ф1mm, Ф5mm, Ф12mm Circle |
8mm, 12mm, |
±60 | -- |
| LS-3 |
Galilean Stereoscope (LED) |
10X, 16X, 25X |
3 steps by drum |
12.5 X |
Heat Absorption, Grey, Red-free, Cobalt Blue |
0°,5°, 10°,20° |
0~14mm | 1~14mm | 0~180° |
φ14mm ,φ10mm, φ5mm, φ3mm, φ1mm, φ0.2mm, 1~14mm |
| LS-4 |
Galilean Stereoscope (LED) |
6x,10×,16×, 25x,40x |
5 steps by drum |
12.5 X |
Heat Absorption, Grey, Red-free, Cobalt Blue |
0°,5°, 10°,20° |
0~14mm | 1~14mm | 0~180° |
φ14mm, φ10mm, φ5mm, φ3mm, φ1mm, φ0.2mm, 1~14mm |
| LS-5 |
Galilean Stereoscope (LED light source, Co-axial background illumination) |
6x,10×,16×, 25x,40x |
5 Steps by drum |
12.5x |
Heat Absorption, Grey, Red-free, Cobalt Blue |
0°,5°, 10°,20° |
0~14mm | 1~14mm | 0~180° |
φ14mm, φ10mm, φ5mm, φ3mm, φ1mm, φ0.2mm, |
| LS-7 |
Converging Stereoscope (With Basic, Standard, Expert Digital, 3 level to choose) |
6.3X,10X, 16X, 25X,40X |
5 Steps by drum |
12.5x |
Heat Absorption, Grey, Red-free, Cobalt Blue |
0°,5°, 10°,20° |
0~14mm | 1~14mm | 0~180° |
φ14mm, φ10mm, φ5mm, φ3mm, φ1mm, φ0.2mm, |
| LS-7DS |
Converging Stereoscope (Digital Slit Lamp) |
6.3X,10X, 16X, 25X,40X |
5 Steps by drum |
12.5x |
Heat Absorption, Grey, Red-free, Cobalt Blue |
0°,5°, 10°,20° |
0~14mm | 1~14mm | 0~180° |
φ9mm, φ8mm, φ5mm, φ3mm, φ2mm, φ1mm, φ0.2mm |
| Features: |
| • PWM Brightness Control |
| • Joystick with split design |
| • Stereo Variator for fundus |
| • observation(Optional) |
| • Built-in Filter to remove |
| • Infrared&Ultraviolet Light |
| ITEM | LS-7 Basic | LS-7 Standard | LS-7 Expert Digital | ||||
| Optical effect | Cell-level observation resolution | ||||||
| Microscope type | Parallel type,Galilean system | ||||||
| Magnification Changer | Revolving drum | ||||||
| Magnification: | 6.3X,10X, 16X, 25X,40X | ||||||
| Eyepiece magnification: | 12.5 X | ||||||
| Visul field diameter | 6.3x(Φ31mm),10X(Φ22mm),16x(Φ14mm),25x(Φ8.5mm),40x(Φ5.5mm) | ||||||
| Pupil Range | 48mm～78mm | ||||||
| Diopter: | ±7D | ||||||
| Illumination Type | Haag streit type | ||||||
| Slit image width: | 0～14mm continuously adjustable | ||||||
| Slit image length: | 1～14mm continuously adjustable | ||||||
| Slit image radial range: | 0～180° continuously adjustable | ||||||
| Filters: | Heat aborption, grey, redfree(green), cobalt blue | ||||||
| Slit aperture size | Φ0.2,Φ1,Φ2,Φ5,Φ10,Φ14(mm) | ||||||
| Illumination tilting | 5°,10°,15°,20° | ||||||
| Max Illumination Intensity | ≥600000 Lux | ||||||
| Light Control | PMW Pulse width modulation | ||||||
| Light source: | Imported LED | ||||||
| Filter | Filter infrared,filter ultraviolet | ||||||
| Handle operation | Slider flexible design operating handle | ||||||
| Movement base | All steel base | ||||||
| Aperture position | / | Beam spliter design | Beam spliter design | ||||
| Eyepiece luminous rate | / | 60% | 100% | ||||
| Camera luminous rate | / | 40% | 100% | ||||
| Flash system | / | None | Synchronous Flash system | ||||
| Background illumination | / | Co-axial | Co-axial+independent | ||||
| Dimensions and weight | |||||||
| Dimensions | 740*640*450mm | ||||||
| Net weight: | 21kg | ||||||
| Gross weight: | 24kg | ||||||
