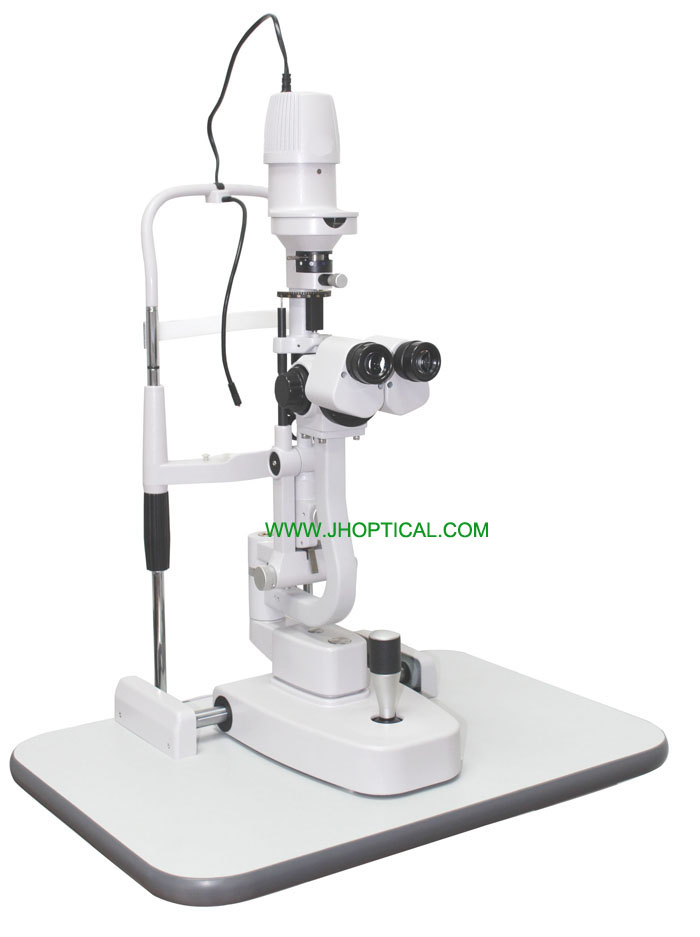

Description
CE,FDA,ISO
| Features: |
| * 5 Step Magnification |
| * LED Illumination |
| * Reduce eye’s stress |
| * More than 50 000 hours working time |
| * Provide bright and sharp light |
| * Continuous illumination control |
| * Possible accessories |
| * Yellow filter |
| Specifications: | |||||||
| Optical system | |||||||
| Microscope type: | Galilean system,Parallet type,Haag-streit type | ||||||
| Magnification changer: | Rotating drum change | ||||||
| Total magnification: | 6X,10X, 16X, 25X,40X | ||||||
| Ocular magnification: | 12.5 X | ||||||
| Field of view: | 10x(Ø22mm),16x(Ø14mm),25x(Ø8.5mm) | ||||||
| Inter pupillary distance: | 52mm～82mm | ||||||
| Diopter adjustment: | ±7D | ||||||
| Slit illumination | |||||||
| Slit image width: | 0～14mm continuous | ||||||
| Slit image length: | 1～14mm continuous | ||||||
| Slit image radial range: | 0～180° | ||||||
| Filters: | Heat aborption, grey, redfree(green), cobalt blue | ||||||
| Illumination fields Ø in mm: | 0.2/1/3/5/10//14,1~14mm continuous | ||||||
| Slit vertical tilt: | 5°,10°,15°,20° | ||||||
| Fixation lamp: | Red LED 3.5V | ||||||
| Light source: | LED | ||||||
| Power Supply | |||||||
| Input voltage: | 100-240V 48-62HZ | ||||||
| Input power: | 70VA | ||||||
| Dimensions and weight | |||||||
| Dimensions | 740*640*450mm | ||||||
| Net weight: | 15kg | ||||||
| Packing size | 77x45x40cm,0.1386cbm | ||||||
| Gross weight: | 18.2kg | ||||||
