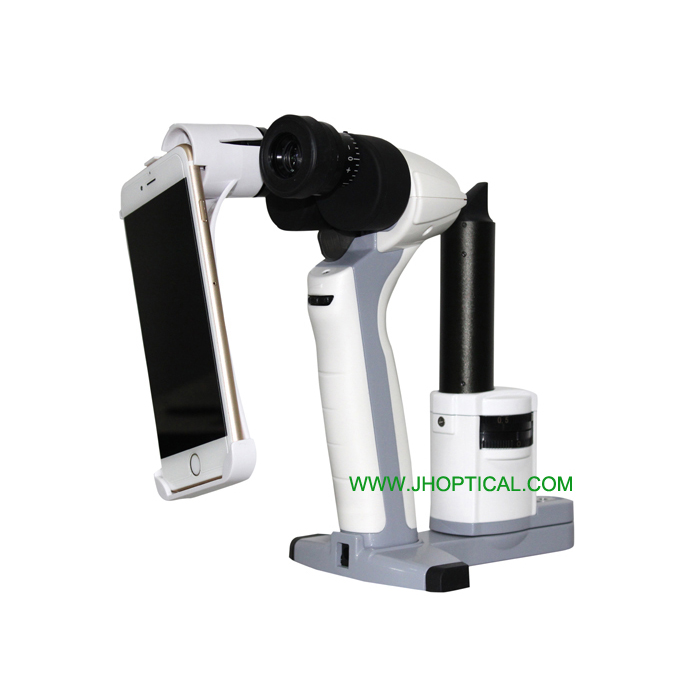

Description
| Features: | |||||||
| 1)One-hand Operation | |||||||
| One-touch magnification switch is easy for doctors' inspection. | |||||||
| 2)Big slit angle | |||||||
| Illumination angle max. up to be 60 degree, can get better slit view for cornea etc.. | |||||||
| 3)AA batteries are supported for long-term continuous operating time | |||||||
| Both AA rechargeable and dry cell batteries are supported, and convenient to purchase everywhere. | |||||||
| Batteries will provide more than 4 hours operating time after full charged. | |||||||
| 4)Warm LED illumination and Max. 250 000lux high intensity | |||||||
| Warm LED illumination with 3500k color temperature and long-time working time,creates a perfect observation circumstance | |||||||
| and helps doctors relieve the visual fatigue at the same time. |
| Specifications： | LS-1A | LS-1B | |||||
| Eyepiece: | 10X | 10X, 16X | |||||
| Microscope Type | Binocular Portable Slit Lamp | ||||||
| Angle of convergence | 13° | ||||||
| Work distance : | 80mm(16X),100mm(10X) | ||||||
| Pupil distance | 49~75mm | ||||||
| Diopter adjustment range : | ±7D | ||||||
| Slit Width: | 0.1mm,0.2mm,0.8mm& Ф1mm,Ф5mm,Ф12mm circle | ||||||
| Slit length: | 12mm(with width 0.1mm, 0.8mm), 8mm(with width 0.2mm) | ||||||
| Slit Angle | ±60° | ||||||
| Filters: | Neutral Density, Red-free, Cobalt Blue | ||||||
| Light Resource | Warm LED, Color Temperature 3500k | ||||||
| Illumination Control | Continuously Variable from Low to Full Brightness( ≥250 000 lux) | ||||||
| LED Working Voltage | AA, 15VA | ||||||
| Battery Type |
AA Dry Cell / Rechargeable Batteries |
||||||
| Continuous Operating Time | ≥ 4 hours | ||||||
| Dimensions | 320*310*205 mm | ||||||
| Net Weight | Approx. 835g | ||||||
| Standard Accessories | Carrying Case, Battery Charger,Forehead Support, Instrument Manual | ||||||
