EC-3200G & CT-700 & LT-800 Patternless lens edger with grooving function,frame scanner and lens scanner

Product Item:EC-3200G & CT-700 & LT-800

MOQ:1

Price:$Login/pcs

Description

Abstract:
EC-3200 has no grooving function,EC-3200G has function of grooving.Wheels are free collocation.
Features:
* Flexible and versatile

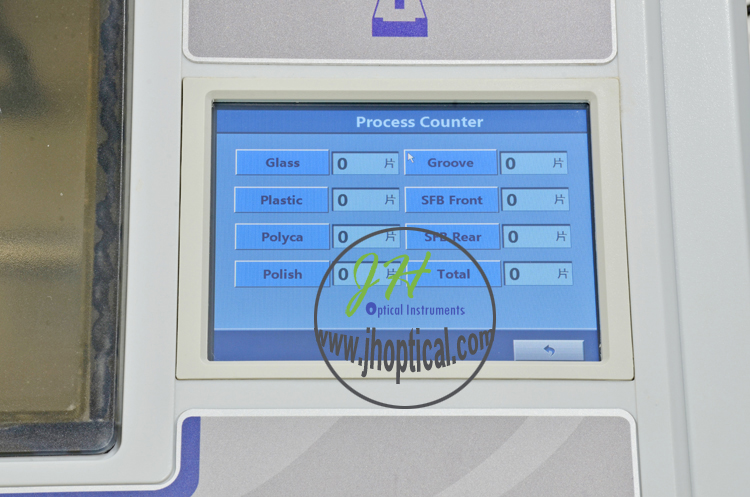

* User-friendly color LCD panel
* Integrated tracing and centering device
* The shape imager detects the shape of a pattern,demo lens and horizontal axis automatically.
* Shape imager measurement.
Specifications:
EC-3200G
PROCESSING SYSTEM
Bevelling,flat edging,grooving,polishing and chamfering
Auto mode and guide mode
Processing lens	Glass,plastic,polycarbonate
Processing pressure	Approx.4.5kg(fixed)
WHEELS
Roughting wheel for glass lens	100mm in diameter,17mm in width
Roughting wheel for plastic lens	100mm in diameter,17mm in width
Finishing wheel	100mm in diameter,23mm in width
Polishing wheel(for flat edge)	100mm in diameter,12mm in width
WATER SUPPLY SYSTEM
Pump circulation	AC 100~230V
PROCESSING ACCURACY
Size accuracy	±0.05mm
Axis angle	±0.1°
WHOLE SYSTEM
Display	5.6" LCD/TFT
Dimensions	520mmx485mmx330mm
Weight	~45kg(only main body)
Power supply	110/220V 50/60Hz
Power consumption	1.2KVA(max.during processing)
LT-800
WHOLE SYSTEM
Measurement time	<20S
Measurement accuracy	<0.1mm
Display	10.4"LCD/TFT(800X600)
Dimensions	363mmx308mmx405mm
Weight	~11kg(only main body)
Power supply	110/220V 50/60Hz
Power consumption	25W
CT-700
WHOLE SYSTEM
Measurement time	<3S
Measurement accuracy	<0.1mm
Display	8"LCD/TFT(800X600)
Dimensions	415mmx260mmx236mm
Weight	~9kg(only main body)
Power supply	110/220V 50/60Hz
Power consumption	25W
Specitions are tentative and subject to change.
