BL-88T 3 Magnifiers Slit lamp, halogen or LED lamp
$
Login
CE
Features:
* Five-step drum magnification for eyepiece .Sclera vein could be observed under the 40x magnification.
* All the optical lenses are moistureproof, mildewproof and anti-reflected treated.
* Large spot diameter,slit length reach to 14mm, more comprehensive view of the eye condition.
* Multi-coated optical glass techonology,imaging is clear and bright,the view field is wide.
* Osram light bulbs,small heat,high-brightness, spot uniformity.
* Handrail design,user-friendly and the convenience of patients.

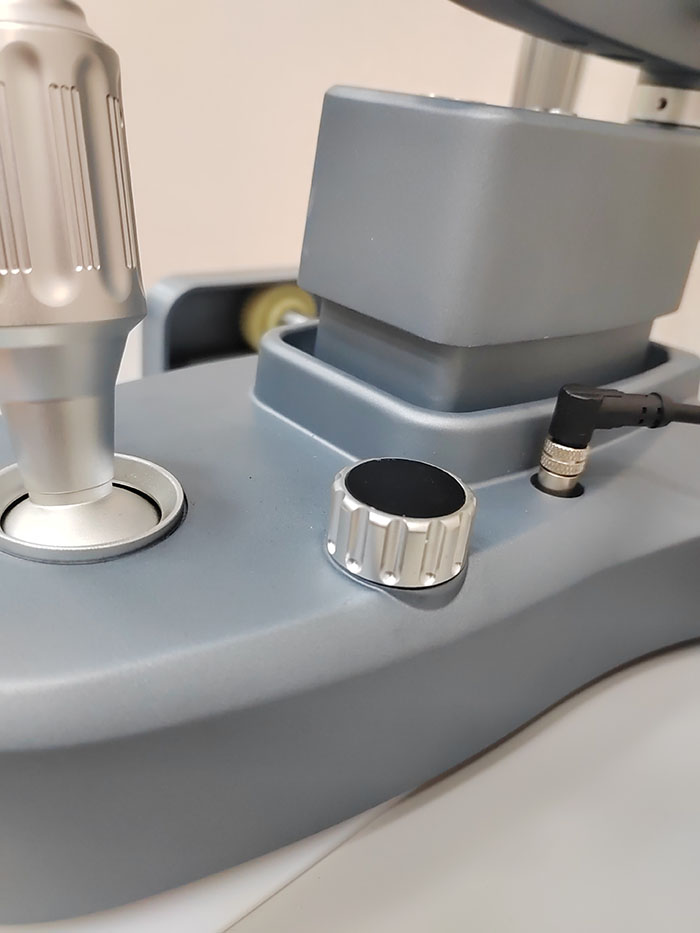

* Oversized joystick space, move base does not touch the hand.
* All the joints can be connected by accessories with international standards.
| Specifications: | |
| Microscope | |
| Microscope Type | Galilean Stereoscope microscope |
| Magnification selection | 5 Steps by drum rotation |
| Eyepieces | 12.5x |
| Magnification Ratio(Field of View) | 6x(33mm), 10(22.5mm), 16(14mm), 25x(8.8mm), 40x(5.5mm) |
| PD adjustment | 50mm ~ 82mm |
| Diopter adjustment | +7D ~ - 7D |
| Base | |
| Left and right move | 110mm |
| Forward and back move | 90mm |
| Up and down move | 30mm |
| Chin rest | |
| Up and down move | 80mm |
| Fixation Lamp | Red LED |
| Property of illumination | |
| Slit width | 0 ~ 14mm continuous (at14mm,slit becomes circle) |
| Slit height | 1 ~ 14mm continuous |
| Slit angle | 0~ 1800 adjustable |
| Slit inclination | 00, 50, 100, 150, 200 |
| Light spot diameter | Ф14mm, Ф10mm, Ф5mm , Ф3mm, Ф2mm, Ф1mm , Ф0.2mm and 1 ~ 14mm continuous |
| Filter | Heat absorption, Grey, Red-free, Cobalt Blue |
| Illumination Bulb | 3V 5W LED LAMP |
| Power | |
| Input voltage | 110V/220V AC |
| Frequency | 50/60HZ |
| Power consumption | 68VA |
| Weight and size | |
| G.W | 18kg |
| N.W | 16kg |
| Dimension | 690mm(L) ×440mm(W) ×420mm(H) |
