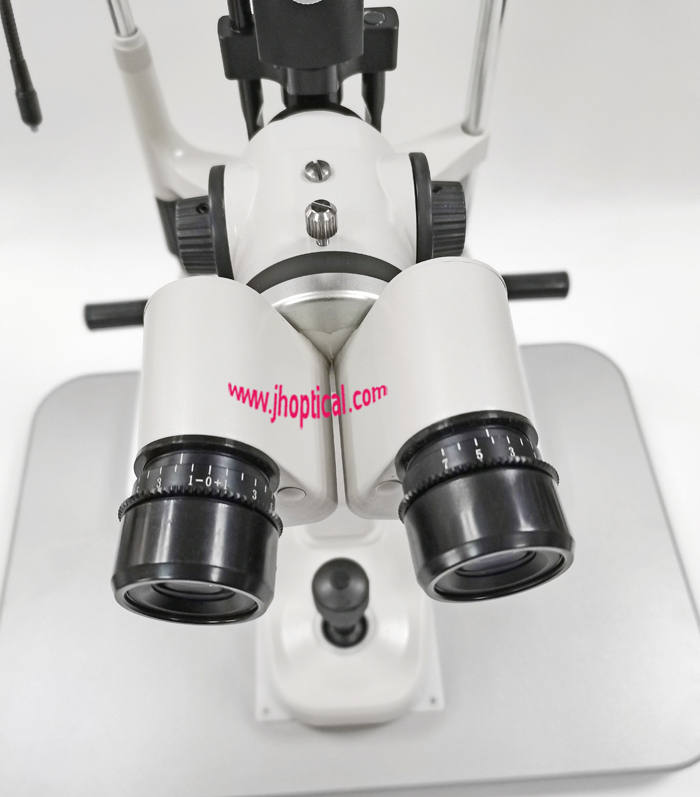

BL-88 5 Magnifiers Slit Lamp, halogen or LED lamp are both available
Price
$
Login
Item#
BL-88
Abstract
Galilean Stereoscope | 6X,10X,16X, 25X,40X | Eyepiece:12.5x | Slit width: 0-14mm | Slit inclination: 0°,5°,10°,20° | Light spot:Ф1-14mm Continuous
已选清单
0种
0件
Specification
1) without table
2) with table
3) with BL-19 table
Description
CE
LED and halogen illumination are with the same prices.
Features:
* Filter wheel can be adjusted by 3600 ,increases 3 more filters with more function
* (patent number: 2010101380635)
* This Slit Lamp uses the Converging Stereoscope type,and drum rotation .
* With 5 magnification ,when reaching 40X magnification ratio ,the blood flow situation can be observed clearly from the blood vessels of the sclera .
* With big light spot diameter ,the slit width can reach 14 mm ,observing the eyes more comprehensively
* By using multi-level coating process deal with the Optical glass, imaging becomes clear and bright and the view is widely open
* Using importing illumination bulb ,with less heat ,brighter and light spot is more well-balanced .
* With high eyespots, large eyepiece, good stereo sense ,convenient to operate when observing .
* Humanized designed for Armrest of the chin rest ,convenient for the patient
* All the connector interface corresponds with the international accessories ,easy to update the system.
| Specifications: | ||||
| Property of Slit Lamp | Microscope Type | Galilean Stereoscope microscope | ||
| Magnification selection | 5 Steps by drum rotation | |||
| Eyepieces | 12.5x | |||
| Magnification Ratio(Field of View) | 6x(33mm), 10×(22.5mm), 16×(14mm), 25x(8.8mm), 40x(5.5mm) | |||
| PD adjustment | 52mm ~ 80mm | |||
| Diopter adjustment | +5D ~ -5D | |||
| Base | Left and right move | 110mm | ||
| Forward and back move | 90mm | |||
| Up and down move | 30mm | |||
| Chin rest | Up and down move | 80mm | ||
| Fixation Lamp | Red LED | |||
| Property of illumination | Slit width | 0 ~ 14mm continuous (at14mm，slit becomes circle) | ||
| Slit height | 1 ~ 14mm continuous | |||
| Slit angle | 0~ 1800 continuous | |||
| Slit inclination | 00,50,100,200 | |||
| Light spot diameter | Ф14mm, Ф10mm, Ф5mm , Ф3mm, Ф2mm, Ф1mm, Ф0.2mm and 1 ~ 14mm continuous | |||
| Filter | Heat absorption, Grey, Red-free, Cobalt Blue | |||
| Illumination Bulb | 12V 50W halogen lamp or LED | |||
| Power | Input voltage | 220V | ||
| Frequency | 50HZ | |||
| Power consumption | 68VA | |||
| Weight and size | G.W | 18kg | ||
| N.W | 16kg | |||
| Dimension | 550mm(L)× 430mm(W)× 780mm(H) | |||
